Wichita Low Inertia Air Tube Disc Clutches
Wichita Low Inertia Air Tube Disc Clutches
SKU:CLU-14ea20
Enhance machinery with Wichita Low Inertia Air Tube Disc Clutches, combining disc clutch excellence with air engagement efficiency. Consult factory for special assembly numbers.
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
Wichita Low Inertia Air Tube Disc Clutches
$5,899.99
Quantity: 1
Claim Your Seller Account
Wichita Low Inertia Air Tube Disc Clutches
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your machinery with Wichita Low Inertia Air Tube Disc Clutches, offering a seamless fusion of disc clutch excellence and air engagement efficiency. With a dynamic torque rating of up to 113514 lb·in, maximum bore size of 4.00 in, and a maximum air pressure of 130 psi, these clutches ensure optimal performance under varying conditions. Manufactured by Wichita Clutch and actuated by compressed air, these clutches provide reliable and low-maintenance solutions for industrial applications. Consult the factory for special assembly numbers and ensure compliance with relevant procurement standards.
Product Specifications
Note 0

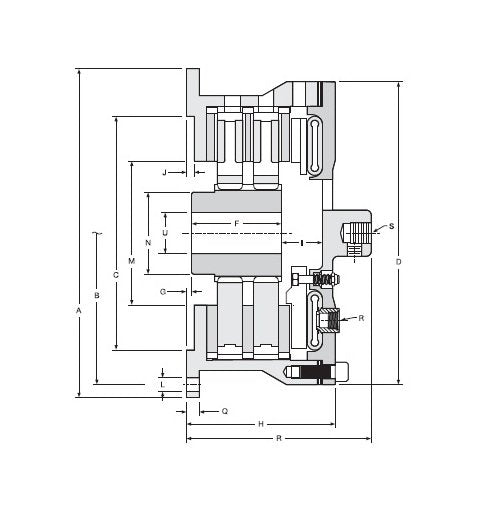

Consult Factory for Special Assembly Number.For mounting, use socket head capscrews conforming to the ASTM-574-97a.(Consult factory for drawing before final layout.)
Specifications Actuation
Air Applied
Specifications Assembly Number
6-016-300-100-0
Specifications Balance Speed
835 rpm
Specifications Bolt Hole Diameter B
20.000 in | 508.00 mm
Specifications Dimension A
21.25 in | 539.8 mm
Specifications Dimension D
20.00 in | 508 mm
Specifications Dimension E
11.69 in | 296.9 mm
Specifications Dimension F
6.63 in | 168.4 mm
Specifications Dimension G
0.38 in | 9.7 mm
Specifications Dimension H
10.19 in | 258.8 mm
Specifications Dimension I
2.31 in | 58.7 mm
Specifications Dimension J
0.38 in | 9.7 mm
Specifications Dimension L
21/32 in | 16.7 mm
Specifications Dimension M
10.50 in | 266.7 mm
Specifications Dimension N
6.00 in | 152.4 mm
Specifications Dimension Q
0.63 in | 16.0 mm
Specifications Dimension R Number Size
2 - 1/2 NPT
Specifications Dimension S
1" - 14NF
Specifications Dynamic Torque Rating 100 Psi7 Bar
113514 lb·in | 12825 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
90811 lb·in | 10080 Nm
Specifications Exhaust Coefficients Operating Air Pressure At 75
1.6
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Air Pressure
130 psi | 9 bar
Specifications Maximum Bore Size
4.00 in | 102 mm
Specifications Maximum Rpm High Speed Airtube
2000 rpm
Specifications Maximum Rpm Standard Airtube
1200 rpm
Specifications Maximum U
4.00 in | 101.6 mm
Specifications Minimum U
1.38 in | 35.1 mm
Specifications Number Of Mounting Holes L
12
Specifications Pilot Diameter C
16.253/16.250 in | 412.83/412.75 mm
Specifications Total Clutch Inertia
125 lb·ft² | 5.27 kg·m²
Specifications Total Clutch Weight
358 lb | 162 kg
Specifications Weight Hub Center Plate
151 lb | 68.5 kg
Specifications Wr2jmr2 Hub Center Plate
29.6 lb·ft² | 1.248 kg·m²
