Wichita Low Inertia Air Tube Disc Clutches
Wichita Low Inertia Air Tube Disc Clutches
SKU:CLU-a10dff
Experience seamless axial pressure engagement with the Wichita Air-Tube Disc Clutch, delivering up to 171886 lb·in dynamic torque rating for optimal machinery performance.
Regular price
$4,899.99
Regular price
Sale price
$4,899.99
Unit price
per
Initiate Order
Wichita Low Inertia Air Tube Disc Clutches
$4,899.99
Quantity: 1
Claim Your Seller Account
Wichita Low Inertia Air Tube Disc Clutches
$4,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

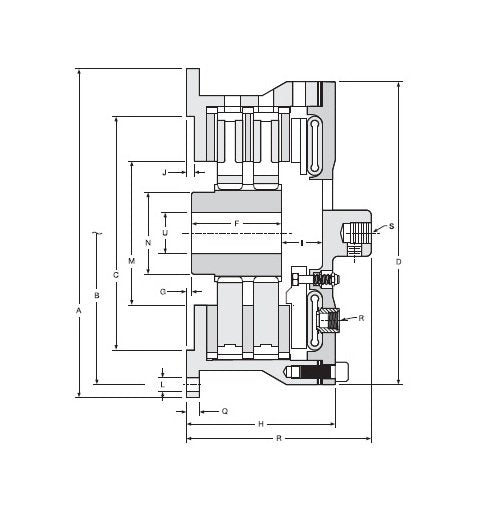

Enhance your machinery with the Wichita Air-Tube Disc Clutch, a superior fusion of disc clutch advantages with direct air engagement. Experience trouble-free operation with axial pressure application through compressed air in a specialized full-circle tube. With a dynamic torque rating up to 171886 lb·in, maximum bore size of 6.50 in, and a weight of 770 lb, this clutch ensures reliable performance in demanding industrial environments.
Product Specifications
Note 0
Consult Factory for Special Assembly Number.For mounting, use socket head capscrews conforming to the ASTM-574-97a.(Consult factory for drawing before final layout.)
Specifications Actuation
Air Applied
Specifications Assembly Number
6-027-100-100-0
Specifications Balance Speed
500 rpm
Specifications Bolt Hole Diameter B
31.500 in | 800.10 mm
Specifications Dimension A
32.75 in | 831.9 mm
Specifications Dimension D
31.00 in | 787.4 mm
Specifications Dimension E
9.38 in | 238.3 mm
Specifications Dimension F
4.50 in | 114.3 mm
Specifications Dimension G
0.75 in | 19.1 mm
Specifications Dimension H
7.88 in | 200.2 mm
Specifications Dimension I
1.38 in | 35.1 mm
Specifications Dimension J
0.25 in | 6.4 mm
Specifications Dimension L
21/32 in | 16.7 mm
Specifications Dimension M
16.25 in | 412.8 mm
Specifications Dimension N
9.00 in | 228.6 mm
Specifications Dimension Q
0.75 in | 19.1 mm
Specifications Dimension R Number Size
3 - 1/2 NPT
Specifications Dimension S
1" - 14NF
Specifications Dynamic Torque Rating 100 Psi7 Bar
171886 lb·in | 19420 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
137509 lb·in | 15260 Nm
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Air Pressure
130 psi | 9 bar
Specifications Maximum Bore Size
6.50 in | 165 mm
Specifications Maximum Rpm High Speed Airtube
1400 rpm
Specifications Maximum Rpm Standard Airtube
700 rpm
Specifications Maximum U
6.50 in | 165.1 mm
Specifications Minimum U
2.50 in | 63.5 mm
Specifications Number Of Mounting Holes L
16
Specifications Pilot Diameter C
27.375/27.378 in | 695.33/695.40 mm
Specifications Total Clutch Inertia
706 lb·ft² | 29.8 kg·m²
Specifications Total Clutch Weight
770 lb | 349 kg
Specifications Weight Hub Center Plate
187 lb | 84.8 kg
Specifications Wr2jmr2 Hub Center Plate
98 lb·ft² | 4.1 kg·m²
