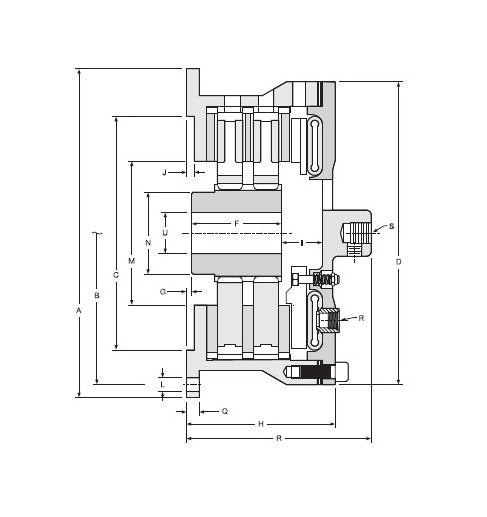

• Wichita Low Inertia Air Tube Disc Clutches - Image 1
1 1
Clutch Engineering →

Wichita Low Inertia Air Tube Disc Clutches

Wichita Low Inertia Air Tube Disc Clutches

CLU-ae0e70

Enhance machinery performance with Wichita Low Inertia Air Tube Disc Clutches featuring high torque ratings & precision engineering.

$2,799.99
$2,799.99
Sale

Initiate Order

Wichita Low Inertia Air Tube Disc Clutches

Wichita Low Inertia Air Tube Disc Clutches

$2,799.99

Quantity: 1

Claim Your Seller Account

Wichita Low Inertia Air Tube Disc Clutches

Wichita Low Inertia Air Tube Disc Clutches

$2,799.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Enhance your machinery with the Wichita Low Inertia Air Tube Disc Clutches, designed to optimize performance in heavy-duty applications. These clutches combine the benefits of a disc type clutch with direct air engagement, providing a trouble-free method of applying axial pressure. With dynamic torque ratings up to 21000 lb·in, maximum bore size of 2.25 in, and a maximum air pressure of 130 psi, these clutches offer reliability and precision. Manufactured by Wichita Clutch, these clutches are ideal for industrial settings requiring high-speed and low inertia solutions. Consult the factory for specialized assembly numbers and mounting instructions.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note 0
Consult Factory for Special Assembly Number.For mounting, use socket head capscrews conforming to the ASTM-574-97a.(Consult factory for drawing before final layout.)
Specifications Actuation
Air Applied
Specifications Assembly Number
6-008-300-103-0
Specifications Balance Speed
1675 rpm
Specifications Dynamic Torque Rating 100 Psi7 Bar
21000 lb·in | 2375 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
16800 lb·in | 1865 Nm
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Air Pressure
130 psi | 9 bar
Specifications Maximum Bore Size
2.25 in | 57 mm
Specifications Maximum Rpm High Speed Airtube
3000 rpm
Specifications Maximum Rpm Standard Airtube
1750 rpm
Specifications Total Clutch Inertia
99 lb·ft² | 4.174 kg·m²
Specifications Total Clutch Weight
92 lb | 42 kg
Specifications Weight Hub Center Plate
28 lb | 12.7 kg
Specifications Wr2jmr2 Hub Center Plate
2.00 lb·ft² | 0.084 kg·m²
