The Wichita Low Inertia Air Tube Disc Clutches combine the advantages of disc type clutches with direct air engagement. Featuring a Dynamic Torque Rating up to 1402500 lb·in, maximum bore size of 18.00 in, and a balance speed of 275 rpm, these clutches offer high performance and efficiency. With a total clutch weight of 3158 lb and dimensions designed for optimal usage, these clutches provide reliable power transmission for industrial applications.
Product Specifications
Note 0
Consult Factory for Special Assembly Number.For mounting, use socket head capscrews conforming to the ASTM-574-97a.(Consult factory for drawing before final layout.)
Specifications Actuation
Air Applied
Specifications Assembly Number
6-048-100-300-0
Specifications Balance Speed
275 rpm
Specifications Bolt Hole Diameter B
58.000 in | 1473.2 mm

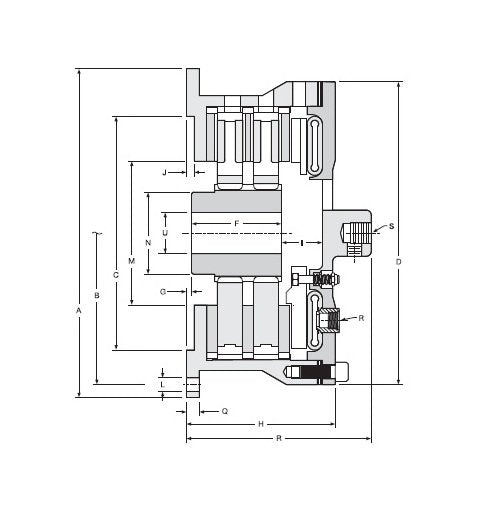

Specifications Dimension A
61.00 in | 1549.4 mm
Specifications Dimension D
56.75 in | 1441.5 mm
Specifications Dimension E
14.69 in | 373.1 mm
Specifications Dimension F
6.00 in | 152.4 mm
Specifications Dimension G
0.00 in | 0.0 mm
Specifications Dimension H
10.69 in | 271.5 mm
Specifications Dimension I
3.69 in | 93.7 mm
Specifications Dimension J
0.25 in | 6.4 mm
Specifications Dimension L
1.06 in | 26.9 mm
Specifications Dimension M
32.00 in | 812.8 mm
Specifications Dimension N
25.75 in | 654.1 mm
Specifications Dimension Q
1.50 in | 38.1 mm
Specifications Dimension R Number Size
4 - 1/2 NPT
Specifications Dimension S
1" NPT
Specifications Dynamic Torque Rating 100 Psi7 Bar
1402500 lb·in | 151200 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
1122000 lb·in | 118800 Nm
Specifications Exhaust Coefficients Operating Air Pressure At 10
2.5
Specifications Exhaust Coefficients Operating Air Pressure At 50
2
Specifications Inflation Coefficients Operating Air Pressure At
1.6
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Air Pressure
130 psi | 9 bar
Specifications Maximum Bore Size
18.00 in | 455 mm
Specifications Maximum Rpm High Speed Airtube
700 rpm
Specifications Maximum Rpm Standard Airtube
400 rpm
Specifications Maximum U
18.00 in | 457.2 mm
Specifications Pilot Diameter C
52.000/52.005 in | 1320.80/1320.93 mm
