Wichita Low Inertia Air Tube Disc Clutches
Wichita Low Inertia Air Tube Disc Clutches
SKU:CLU-9fd9df
High-performance air tube disc clutches for heavy-duty applications, providing precise control and reliability.
Regular price
$5,699.99
Regular price
Sale price
$5,699.99
Unit price
per
Initiate Order
Wichita Low Inertia Air Tube Disc Clutches
$5,699.99
Quantity: 1
Claim Your Seller Account
Wichita Low Inertia Air Tube Disc Clutches
$5,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wichita Low Inertia Air Tube Disc Clutches offer superior performance by combining the best features of disc clutches with direct air engagement. With a dynamic torque rating of up to 2805000 lb·in, maximum bore size of 18.00 in, and a total clutch inertia of 13775 lb·ft², these clutches are designed for heavy-duty applications. The air pressure application through a full-circle tube ensures reliable and trouble-free operation. Built to withstand high-speed operations and deliver precision control, these clutches are ideal for industrial and institutional requirements.
Product Specifications
Note 0
Consult Factory for Special Assembly Number.For mounting, use socket head capscrews conforming to the ASTM-574-97a.(Consult factory for drawing before final layout.)
Specifications Actuation
Air Applied
Specifications Assembly Number
6-048-200-300-0
Specifications Balance Speed
275 rpm
Specifications Bolt Hole Diameter B
58.000 in | 1473.2 mm

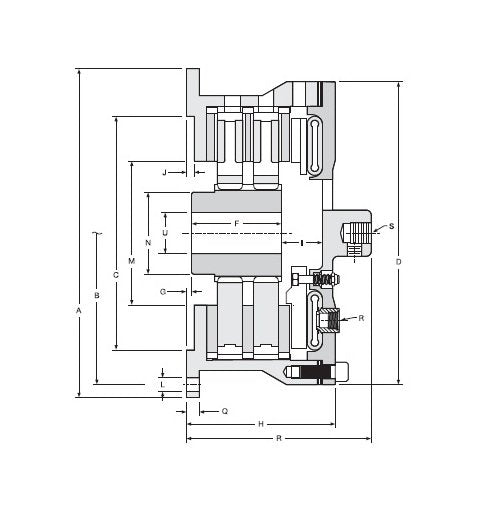

Specifications Dimension A
61.00 in | 1549.4 mm
Specifications Dimension D
56.75 in | 1441.5 mm
Specifications Dimension E
19.07 in | 484.4 mm
Specifications Dimension F
8.75 in | 222.3 mm
Specifications Dimension G
1.00 in | 25.4 mm
Specifications Dimension H
15.07 in | 382.8 mm
Specifications Dimension I
4.32 in | 109.7 mm
Specifications Dimension J
0.25 in | 6.4 mm
Specifications Dimension L
1.06 in | 26.9 mm
Specifications Dimension M
32.00 in | 812.8 mm
Specifications Dimension N
25.75 in | 654.1 mm
Specifications Dimension Q
1.50 in | 38.1 mm
Specifications Dimension R Number Size
4 - 1/2 NPT
Specifications Dimension S
1" NPT
Specifications Dynamic Torque Rating 100 Psi7 Bar
2805000 lb·in | 302400 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
2805000 lb·in | 2805000 Nm
Specifications Exhaust Coefficients Operating Air Pressure At 10
2.5
Specifications Exhaust Coefficients Operating Air Pressure At 50
2
Specifications Inflation Coefficients Operating Air Pressure At
1.6
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Air Pressure
130 psi | 9 bar
Specifications Maximum Bore Size
18.00 in | 455 mm
Specifications Maximum Rpm High Speed Airtube
700 rpm
Specifications Maximum Rpm Standard Airtube
400 rpm
Specifications Maximum U
18.00 in | 457.2 mm
Specifications Pilot Diameter C
52.000/52.005 in | 1320.80/1320.93 mm
