The Wichita Low Inertia Air Tube Disc Clutches offer a superior combination of disc clutch features with direct air engagement, providing optimal performance in demanding applications. With dynamic torque ratings up to 31800 lb·in, maximum bore size of 2.50 inches, and a robust construction, these clutches ensure reliable operation at air pressures up to 130 psi. Designed for high-speed applications with a balance speed of 1200 rpm and options for both standard and high-speed airtubes, the Wichita clutches provide exceptional durability and precision. Consult Factory for Special Assembly Number and compliance with ASTM-574-97a socket head capscrews.
Product Specifications
Note 0

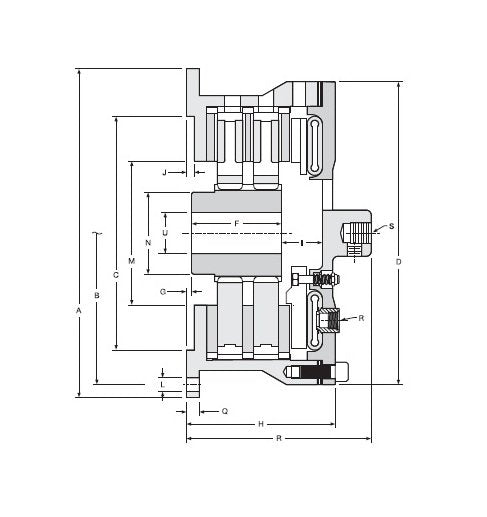

Consult Factory for Special Assembly Number.For mounting, use socket head capscrews conforming to the ASTM-574-97a.(Consult factory for drawing before final layout.)
Specifications Actuation
Air Applied
Specifications Assembly Number
6-011-200-102-0
Specifications Balance Speed
1200 rpm
Specifications Bolt Hole Diameter B
14.750 in | 374.65 mm
Specifications Dimension A
16.00 in | 406.4 mm
Specifications Dimension D
14.75 in | 374.7 mm
Specifications Dimension E
9.00 in | 228.6 mm
Specifications Dimension F
4.38 in | 111.3 mm
Specifications Dimension G
0.25 in | 6.4 mm
Specifications Dimension H
7.25 in | 184.2 mm
Specifications Dimension I
2.00 in | 50.8 mm
Specifications Dimension J
0.38 in | 9.7 mm
Specifications Dimension L
21/32 in | 16.7 mm
Specifications Dimension M
7.00 in | 177.8 mm
Specifications Dimension N
4.00 in | 101.6 mm
Specifications Dimension Q
0.63 in | 16.0 mm
Specifications Dimension R Number Size
2 - 1/2 NPT
Specifications Dimension S
1" - 14NF
Specifications Dynamic Torque Rating 100 Psi7 Bar
31800 lb·in | 3570 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
25440 lb·in | 2800 Nm
Specifications Exhaust Coefficients Operating Air Pressure At 10
2.8
Specifications Exhaust Coefficients Operating Air Pressure At 50
2
Specifications Inflation Coefficients Operating Air Pressure At
1.6
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Air Pressure
130 psi | 9 bar
Specifications Maximum Bore Size
2.50 in | 64 mm
Specifications Maximum Rpm High Speed Airtube
2800 rpm
Specifications Maximum Rpm Standard Airtube
1400 rpm
Specifications Maximum U
2.50 in | 63.5 mm
Specifications Pilot Diameter C
11.375/11.378 in | 288.93/289.00 mm
