Wichita Low Inertia Air Tube Disk Clutch
Wichita Low Inertia Air Tube Disk Clutch
SKU:CLU-37e43d
Experience superior performance with the Wichita Low Inertia Air Tube Disc Clutch. Dynamic torque up to 5390 Nm at 100 psi, ideal for industrial applications.
Regular price
$3,299.00
Regular price
Sale price
$3,299.00
Unit price
per
Initiate Order
Wichita Low Inertia Air Tube Disk Clutch
$3,299.00
Quantity: 1
Claim Your Seller Account
Wichita Low Inertia Air Tube Disk Clutch
$3,299.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wichita Low Inertia Air Tube Disc Clutch offers superior performance by combining the best features of a disc type clutch with direct air engagement. With a dynamic torque rating of up to 5390 Nm at 100 psi, maximum bore size of 64mm, and a balance speed of 1200 rpm, this clutch ensures reliable and efficient operation. Manufactured by Wichita Clutch, it is designed for easy air application and optimal performance in various industrial applications.
Product Specifications
Note 0

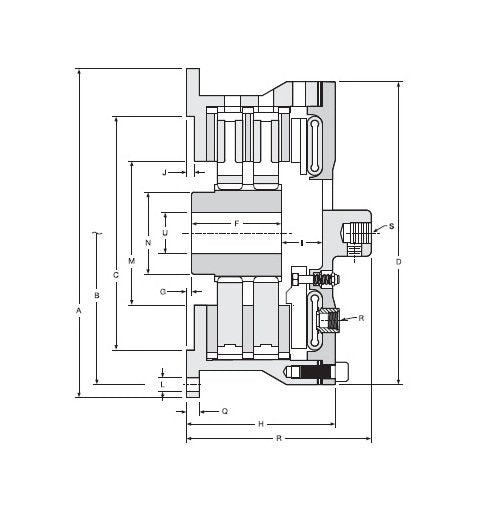

Consult Factory for Special Assembly Number.For mounting, use socket head capscrews conforming to the ASTM-574-97a.(Consult factory for drawing before final layout.)
Specifications Actuation
Air Applied
Specifications Assembly Number
6-011-300-100-0
Specifications Balance Speed
1200 rpm
Specifications Dynamic Torque Rating 100 Psi7 Bar
47700 lb·in | 5390 Nm
Specifications Dynamic Torque Rating 80 Psi55 Bar
47700 lb·in | 4235 Nm
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Air Pressure
130 psi | 9 bar
Specifications Maximum Bore Size
2.50 in | 64 mm
Specifications Maximum Rpm High Speed Airtube
2800 rpm
Specifications Maximum Rpm Standard Airtube
1400 rpm
Specifications Total Clutch Inertia
52 lb·ft² | 2.19 kg·m²
Specifications Total Clutch Weight
208 lb | 94 kg
Specifications Weight Hub Center Plate
121 lb | 54.9 kg
Specifications Wr2jmr2 Hub Center Plate
7.00 lb·ft² | 0.295 kg·m²
