The Wichita Power Take-Off Clutch 218-C is a top-of-the-line mechanical clutch designed for ultimate reliability and seamless performance. Featuring a disc design for smooth startups, air-activated controls for remote operation, and high-speed capabilities up to 700 HP, this clutch is ideal for a wide range of applications. With a heavy-duty Fuller® 'Solo' truck clutch that prevents torsional vibration and spline wear, the Wichita PTO ensures superior durability and performance. Its innovative design includes bearing support to eliminate sideload on the crankshaft, offering long service life and minimal maintenance requirements.
Product Specifications
Design Features 0
Disc design provides smooth, shock free start-ups.Air activated-ideal for automatic or remote controls.Bearing support eliminates sideload on crankshaft.High speed air tube not affected by centrifugal force.No O-rings or diaphragms to wear out.Dynamically balanced for high speed operation.Models available for all popular diesel engines. Up to 700 HP capacity.
General Description 0
Two mechanically activated PTO's are now available in addition to the performance-proven Air Tube Disc Clutch PTO's. Complete clutch engagement of the mechanical PTO units is assured with each release of the hand lever due to the incorporation of a heavy-duty Fuller® "Solo" truck clutch. With its many outstanding features, the Fuller clutch used in the Wichita PTO prevents torsional vibration from damaging engine or transmission components, or causing spline wear. The result is superior Power Take-Off performance and durability!
Specifications Actuation
Air Applied
Specifications Bolt Hole Diameter
21/32
Specifications Clutch Size
218

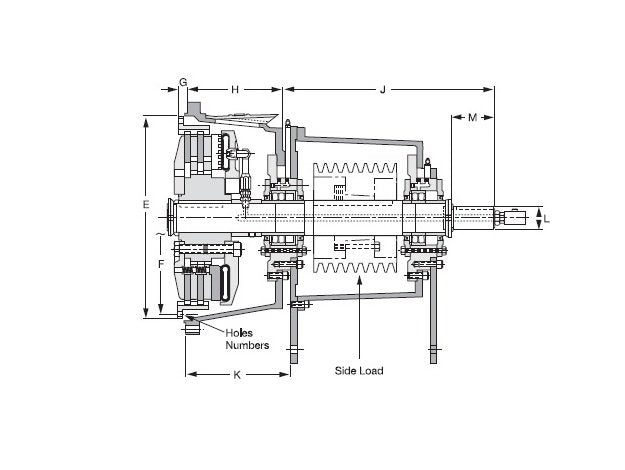

Specifications Dimension E 0000 0005
22.498 in
Specifications Dimension F
21-3/8 in
Specifications Dimension G
0.625 in
Specifications Dimension H
10-13/16 in
Specifications Dimension J
23-15/16 in
Specifications Dimension K
11-13/16 in
Specifications Dimension L 0000 To 0002
2.500 in
Specifications Dimension M
4-5/8 in
Specifications Keyway
5/8 X 5/16
Specifications Manufacturer
Wichita Clutch
Specifications Number Of Bolt Holes
6
Specifications Number Type Of Grooves
8-"8V"
Specifications Pd Of Sheave
12.3
Specifications Sae Number
0
Specifications Torque Rating
129000 lb·in

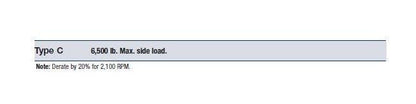

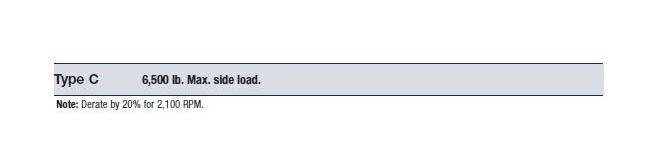

Specifications Type
C
Applications 0
The In-line PTO design provides direct drive operation with side load capability. It has an automatic self-adjusting feature and does not require a pilot bearing. Other features such as standard SAE flywheel mounting, interchangeable clutch and clutch housing, constant plate load and easy maintenance add up to superior performance.Side Load PTOâs utilize a pair of heavy-duty roller bearings fitted in to the shaft housing. The bearing support system eliminates the transmission of side loads that could reduce durability or even damage the engineâs crank -shaft. Its torque capacities range up to 420 HP @ 2100 RPM.Air-Tube Disc Power Take-Off Clutches provide dependable trouble-free performance on indirect drives with large over hung loads on engines of 250-700 HP. The Wichita design isolates the side load from the engineâs crankshaft for long service life. Simple air controls can be utilized to remotely control the clutch as well as the throttle. Wichita PTOâs have been successfully used for oil field, construction and marine applications.
