Wichita Standard Vent Clutch
Wichita Standard Vent Clutch
SKU:CLU-2de23a
Reliable Wichita Standard Vent Clutch for large inertia loads, smooth starts, and consistent power transmission.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Wichita Standard Vent Clutch
$2,899.99
Quantity: 1
Claim Your Seller Account
Wichita Standard Vent Clutch
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

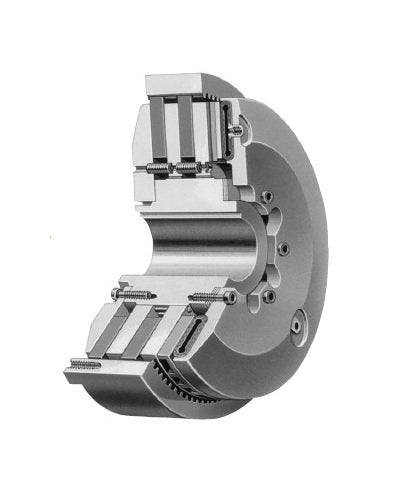

The Wichita Standard Vent Clutch is a reliable power transmission solution ideal for large inertia loads requiring smooth controlled starts. Designed with a simple air-tube mechanism for fast engagement and disengagement, this clutch is unaffected by centrifugal force, providing consistent performance. With a slip torque capacity of 14,875,000 lb·in at 100 psi and a maximum horsepower rating ranging from 4,132 to 23,611 hp per 100 RPM, it offers exceptional power handling capabilities. Manufactured by Wichita Clutch, it meets stringent industry standards for optimal performance and durability.
Product Specifications
Note 0
Maximum air pressure - 100 PSI
Specifications Actuation
Air Applied
Specifications Hi Speed Airtube Maximum Speed
550 rpm
Specifications Lining Area
18100 in²
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Horsepower Per 100 Rpm Duty A
23611 hp
Specifications Maximum Horsepower Per 100 Rpm Duty B
16528 hp
Specifications Maximum Horsepower Per 100 Rpm Duty C
8264 hp
Specifications Maximum Horsepower Per 100 Rpm Duty D
4132 hp
Specifications Recommended Clearance
1/2 to 9/16 in
Specifications Slip Torque Capacity At 100 Psi 3 Cf
14875000 lb·in
Specifications Total Weight
11750 lb
