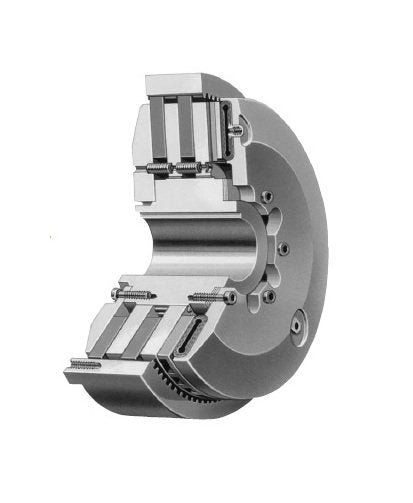

Wichita Standard Vent Clutch-Coupling
Wichita Standard Vent Clutch-Coupling
SKU:CLU-b47b3a
Reliable Wichita Standard Vent Clutch-Coupling for precise power transmission, designed to meet high inertia load demands.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Wichita Standard Vent Clutch-Coupling
$2,899.99
Quantity: 1
Claim Your Seller Account
Wichita Standard Vent Clutch-Coupling
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance power transmission efficiency with the Wichita Standard Vent Clutch-Coupling. Designed by Wichita Clutch, this air-tube actuated clutch offers reliable and smooth operation, unaffected by centrifugal force. With a slip torque capacity of 4207500 lb·in at 100 PSI and a maximum horsepower rating of up to 6678 hp, it is ideal for large inertia loads requiring controlled starts. The compact design ensures quick engagement and disengagement, making it a perfect choice for applications where precision and durability are paramount.
Product Specifications
Note 0
Maximum air pressure - 100 PSI
Specifications Actuation
Air Applied
Specifications Driving Ring Friction Disc Weight
1140
Specifications Driving Ring Friction Disc Wr2
4360
Specifications Hi Speed Airtube Maximum Speed
700 rpm
Specifications Lining Area
6030 in²
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Horsepower Per 100 Rpm Duty A
6678 hp
Specifications Maximum Horsepower Per 100 Rpm Duty B
4800 hp
Specifications Maximum Horsepower Per 100 Rpm Duty C
2400 hp
Specifications Maximum Horsepower Per 100 Rpm Duty D
1370 hp
Specifications Recommended Clearance
3/16 to 1/4 in
Specifications Slip Torque Capacity At 100 Psi 3 Cf
4207500 lb·in
Specifications Total Weight
5590 lb
Specifications Total Wr2
13850 lb/ft²
