Wichita Standard Vent Clutches
Wichita Standard Vent Clutches
SKU:CLU-e24b12
Experience reliable power transmission with Wichita Standard Vent Clutches. Perfect for smooth starts with large inertia loads.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Wichita Standard Vent Clutches
$2,899.99
Quantity: 1
Claim Your Seller Account
Wichita Standard Vent Clutches
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

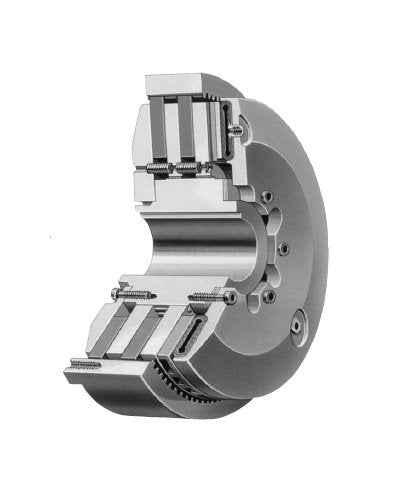

The Wichita Standard Vent Clutches are meticulously engineered for reliable power transmission with precision performance. These clutches feature a simple air-tube design that ensures swift engagement and disengagement, ideal for applications requiring controlled starts with large inertia loads. With a slip torque capacity of 517,500 lb·in at 100 psi, and maximum horsepower ranging from 165hp to 821hp per 100 RPM, these clutches deliver exceptional efficiency and durability. Manufactured by Wichita Clutch, these clutches are designed to meet the highest standards of quality and performance for institutional and government procurement needs.
Product Specifications
Note 0
Maximum air pressure - 100 PSI
Specifications Actuation
Air Applied
Specifications Driving Ring Friction Disc Weight
265
Specifications Driving Ring Friction Disc Wr2
350
Specifications Hi Speed Airtube Maximum Speed
1400 rpm
Specifications Lining Area
2190 in²
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Horsepower Per 100 Rpm Duty A
821 hp
Specifications Maximum Horsepower Per 100 Rpm Duty B
600 hp
Specifications Maximum Horsepower Per 100 Rpm Duty C
300 hp
Specifications Maximum Horsepower Per 100 Rpm Duty D
165 hp
Specifications Recommended Clearance
5/32 to 7/32 in
Specifications Slip Torque Capacity At 100 Psi 3 Cf
517500 lb·in
Specifications Total Weight
1200 lb
Specifications Total Wr2
945 lb/ft²
