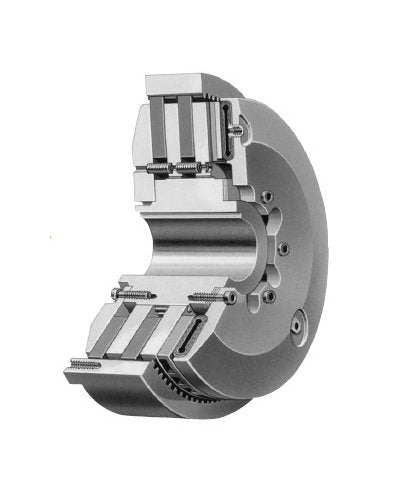

Wichita Standard Vent Clutches
Wichita Standard Vent Clutches
SKU:CLU-3bcfc6
Reliable Wichita Standard Vent Clutches with exceptional slip torque capacity and rapid engagement. Ideal for smooth controlled starts in industrial applications.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Wichita Standard Vent Clutches
$2,499.99
Quantity: 1
Claim Your Seller Account
Wichita Standard Vent Clutches
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wichita Standard Vent Clutches are expertly designed for precise in-line power transmission, featuring a revolutionary air-tube design that ensures rapid engagement and disengagement. With a slip torque capacity of 2805000 lb·in at 100 psi, these clutches deliver unmatched reliability unaffected by centrifugal force. Achieve smooth and controlled starts even with large inertia loads, meeting the demands of industrial applications. Manufactured by Wichita Clutch, these clutches offer exceptional performance and durability critical for heavy-duty operations.
Product Specifications
Note 0
Maximum air pressure - 100 PSI
Specifications Actuation
Air Applied
Specifications Driving Ring Friction Disc Weight
785
Specifications Driving Ring Friction Disc Wr2
3130
Specifications Hi Speed Airtube Maximum Speed
700 rpm
Specifications Lining Area
4020 in²
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Horsepower Per 100 Rpm Duty A
4452 hp
Specifications Maximum Horsepower Per 100 Rpm Duty B
3200 hp
Specifications Maximum Horsepower Per 100 Rpm Duty C
1600 hp
Specifications Maximum Horsepower Per 100 Rpm Duty D
915 hp
Specifications Recommended Clearance
1/8 to 3/16 in
Specifications Slip Torque Capacity At 100 Psi 3 Cf
2805000 lb·in
Specifications Total Weight
4500 lb
Specifications Total Wr2
11200 lb/ft²
