Wichita Standard Vent Clutches
Wichita Standard Vent Clutches
SKU:CLU-52d832
Reliable Wichita Standard Vent Clutch-Coupling for smooth starts and high inertia loads.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Wichita Standard Vent Clutches
$2,899.99
Quantity: 1
Claim Your Seller Account
Wichita Standard Vent Clutches
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

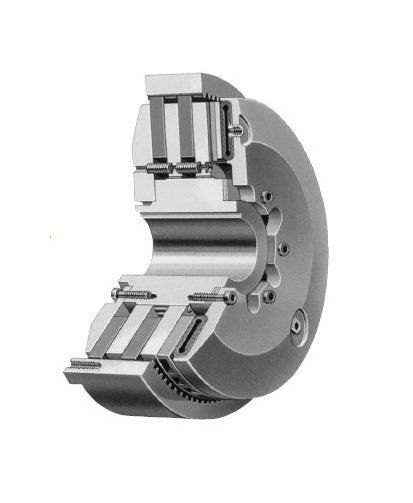

The Wichita Standard Vent Clutch-Coupling is a high-performance solution for in-line power transmission. Designed with a simple air-tube system that ensures rapid engagement and disengagement, it offers exceptional reliability for applications with large inertia loads. With a slip torque capacity of 13965000 lb·in at 100 psi, and maximum horsepower ranging from 3879 hp to 22167 hp per 100 RPM in different duty categories, this clutch is built for efficiency and precision. The compact design, unaffected by centrifugal force, and absence of self-energization make it ideal for smooth starts with controlled operation. Suitable clearance, high-speed airtube capabilities up to 400 rpm, and a generous lining area of 14460 in² further enhance its performance. Manufacturer: Wichita Clutch. Actuation: Air Applied.
Product Specifications
Note 0
Maximum air pressure - 100 PSI
Specifications Actuation
Air Applied
Specifications Hi Speed Airtube Maximum Speed
400 rpm
Specifications Lining Area
14460 in²
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Horsepower Per 100 Rpm Duty A
22167 hp
Specifications Maximum Horsepower Per 100 Rpm Duty B
15517 hp
Specifications Maximum Horsepower Per 100 Rpm Duty C
7758 hp
Specifications Maximum Horsepower Per 100 Rpm Duty D
3879 hp
Specifications Recommended Clearance
5/16 to 7/16 in
Specifications Slip Torque Capacity At 100 Psi 3 Cf
13965000 lb·in
