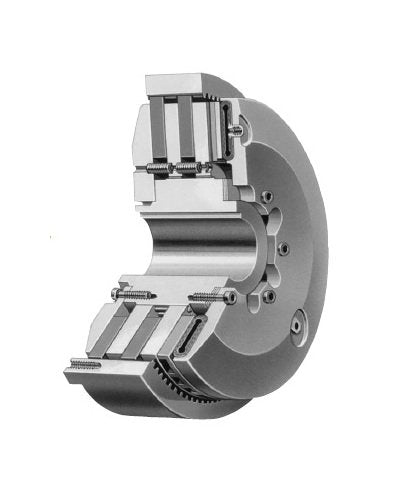

Wichita Standard Vent Clutches
Wichita Standard Vent Clutches
SKU:CLU-50ca88
Precision-designed Wichita Standard Vent Clutches for reliable power transmission with controlled starts. Ideal for large inertia loads.
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
Wichita Standard Vent Clutches
$5,899.99
Quantity: 1
Claim Your Seller Account
Wichita Standard Vent Clutches
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wichita Standard Vent Clutches are precision-designed for reliable power transmission, ideal for applications requiring controlled starts. With a slip torque capacity of 307400 lb·in at 100 psi, these clutches ensure smooth engagement and disengagement without self-energization. Built-in safety features and a durable construction make them well-suited for large inertia loads, providing exceptional performance and durability. Trust the Wichita Standard Vent Clutches for dependable operation under demanding conditions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0
Maximum air pressure - 100 PSI
Specifications Actuation
Air Applied
Specifications Driving Ring Friction Disc Weight
180
Specifications Driving Ring Friction Disc Wr2
200
Specifications Hi Speed Airtube Maximum Speed
1400 rpm
Specifications Lining Area
1148 in²
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Horsepower Per 100 Rpm Duty A
487 hp
Specifications Maximum Horsepower Per 100 Rpm Duty B
360 hp
Specifications Maximum Horsepower Per 100 Rpm Duty C
180 hp
Specifications Maximum Horsepower Per 100 Rpm Duty D
80 hp
Specifications Recommended Clearance
1/8 to 3/16 in
Specifications Slip Torque Capacity At 100 Psi 3 Cf
307400 lb·in
Specifications Total Weight
790 lb
Specifications Total Wr2
535 lb/ft²
