Wichita Standard Vent Clutches
Wichita Standard Vent Clutches
SKU:CLU-809ac6
Premium Wichita Standard Vent Clutches - Max Power, Smooth Starts, Unmatched Durability
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Wichita Standard Vent Clutches
$3,499.99
Quantity: 1
Claim Your Seller Account
Wichita Standard Vent Clutches
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

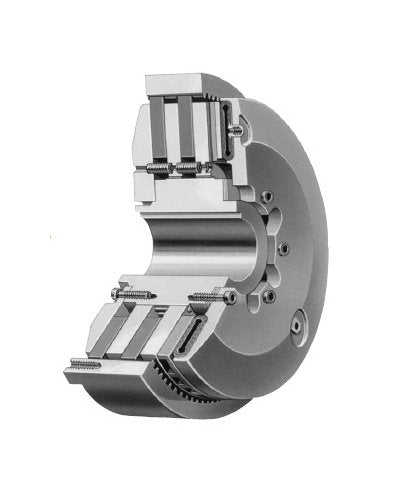

The Wichita Standard Vent Clutches are expertly engineered for robust in-line power transmission with exceptional slip torque capacity up to 11,900,000 lb·in at 100 psi. Designed to deliver reliable performance, these clutches offer unrivaled power with a maximum horsepower of 18,880 hp under Duty A conditions. With precise actuation through an air-tube system, these clutches ensure smooth and controlled starts, making them ideal for applications requiring high inertia loads. Manufactured by Wichita Clutch, these clutches maintain a recommended clearance of 5/16 to 7/16 inches for optimal operation. With a total weight of 12,000 lbs and compliance with industry standards, the Wichita Standard Vent Clutches are the top choice for industries demanding efficiency and durability.
Product Specifications
Note 0
Maximum air pressure - 100 PSI
Specifications Actuation
Air Applied
Specifications Driving Ring Friction Disc Weight
2900
Specifications Driving Ring Friction Disc Wr2
16615
Specifications Hi Speed Airtube Maximum Speed
550 rpm
Specifications Lining Area
14480 in²
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Horsepower Per 100 Rpm Duty A
18880 hp
Specifications Maximum Horsepower Per 100 Rpm Duty B
13900 hp
Specifications Maximum Horsepower Per 100 Rpm Duty C
6940 hp
Specifications Maximum Horsepower Per 100 Rpm Duty D
3880 hp
Specifications Recommended Clearance
5/16 to 7/16 in
Specifications Slip Torque Capacity At 100 Psi 3 Cf
11900000 lb·in
Specifications Total Weight
12000 lb
Specifications Total Wr2
41000 lb/ft²
