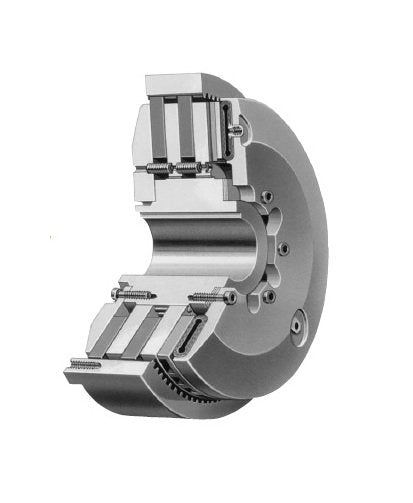

Wichita Standard Vent Clutches
Wichita Standard Vent Clutches
SKU:CLU-b8a753
Reliable power transmission with smooth starts. Air-tube design for quick engagement. Ideal for large inertia loads.
Regular price
$1,499.00
Regular price
Sale price
$1,499.00
Unit price
per
Initiate Order
Wichita Standard Vent Clutches
$1,499.00
Quantity: 1
Claim Your Seller Account
Wichita Standard Vent Clutches
$1,499.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wichita Standard Vent Clutches provide reliable in-line power transmission solutions, ideal for large inertia loads requiring smooth controlled starts. Featuring a sophisticated air-tube design with minimal air volume, these clutches ensure quick engagement and disengagement unaffected by centrifugal force. With a slip torque capacity of 21000 lb·in at 100 psi, these clutches deliver top-notch performance. Manufactured by Wichita Clutch, these clutches meet strict quality standards and are designed for durability and efficiency.
Product Specifications
Note 0
Maximum air pressure - 100 PSI
Specifications Actuation
Air Applied
Specifications Driving Ring Friction Disc Weight
28
Specifications Driving Ring Friction Disc Wr2
2.4
Specifications Hi Speed Airtube Maximum Speed
3000 rpm
Specifications Lining Area
168 in²
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Horsepower Per 100 Rpm Duty A
33.3 hp
Specifications Maximum Horsepower Per 100 Rpm Duty B
24 hp
Specifications Maximum Horsepower Per 100 Rpm Duty C
12 hp
Specifications Maximum Horsepower Per 100 Rpm Duty D
6 hp
Specifications Recommended Clearance
3/32 to 5/32 in
Specifications Slip Torque Capacity At 100 Psi 3 Cf
21000 lb·in
Specifications Total Weight
80 lb
Specifications Total Wr2
5.1 lb/ft²
