Wichita Vent Combination Clutch-Coupling
Wichita Vent Combination Clutch-Coupling
SKU:CLU-5b840c
Premium Wichita Vent Clutch-Coupling for reliable power transmission with rapid engagement and unmatched efficiency.
Regular price
$1,850.99
Regular price
Sale price
$1,850.99
Unit price
per
Initiate Order
Wichita Vent Combination Clutch-Coupling
$1,850.99
Quantity: 1
Claim Your Seller Account
Wichita Vent Combination Clutch-Coupling
$1,850.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

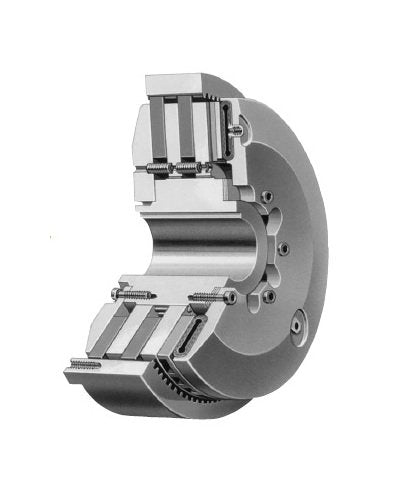

The Wichita Vent Combination Clutch-Coupling is a premium-grade solution designed for reliable power transmission in demanding industrial environments. Its innovative air-tube design ensures rapid engagement and disengagement, unaffected by centrifugal force. With a slip torque capacity of 7000 lb·in and varying duty capacities, it excels in providing smooth, controlled starts ideal for large inertia loads. Manufactured by Wichita Clutch, this product ensures top-notch performance and durability.
Product Specifications
Note 0
Maximum air pressure - 100 PSI
Specifications Actuation
Air Applied
Specifications Driving Ring Friction Disc Weight
8
Specifications Driving Ring Friction Disc Wr2
1.2
Specifications Hi Speed Airtube Maximum Speed
3000 rpm
Specifications Lining Area
56 in²
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Horsepower Per 100 Rpm Duty A
11.1 hp
Specifications Maximum Horsepower Per 100 Rpm Duty B
8 hp
Specifications Maximum Horsepower Per 100 Rpm Duty C
4 hp
Specifications Maximum Horsepower Per 100 Rpm Duty D
2 hp
Specifications Recommended Clearance
1/16 to 1/8 in
Specifications Slip Torque Capacity At 100 Psi 3 Cf
7000 lb·in
Specifications Total Weight
36 lb
Specifications Total Wr2
3 lb/ft²
