Wide Flange Tapered Plastic Plug Cap
Wide Flange Tapered Plastic Plug Cap
SKU:WID-7a7f5e
Versatile Wide Flange Tapered Plug Cap for threaded and non-threaded openings, RoHS compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wide Flange Tapered Plastic Plug Cap
$29.99
Quantity: 1
Claim Your Seller Account
Wide Flange Tapered Plastic Plug Cap
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

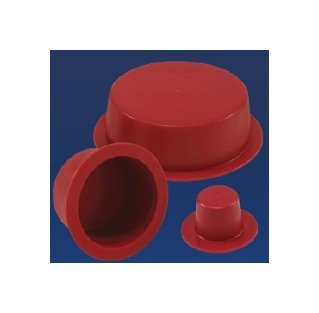

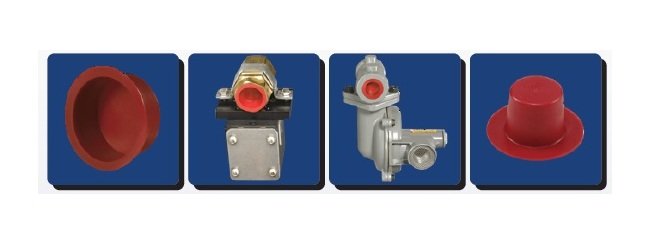

The Wide Flange Tapered Plastic Plug Cap by MOCAP is a versatile solution suitable for plugging a wide range of openings, including both threaded and non-threaded holes, pipe and tube ends, connector ports, and fittings. Crafted from durable polyethylene, these plug caps are RoHS compliant and can withstand temperatures up to 175°F (80°C), making them ideal for various industrial applications. MOCAP offers these plug caps in various sizes, ensuring immediate availability for your needs.
Product Specifications
Applications 0

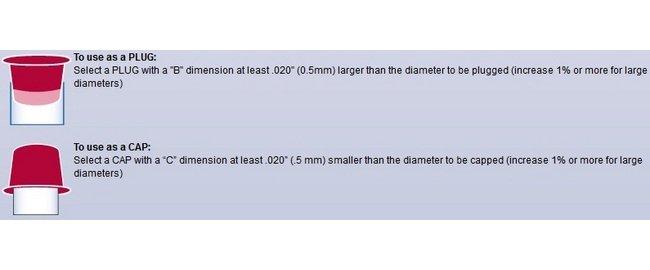

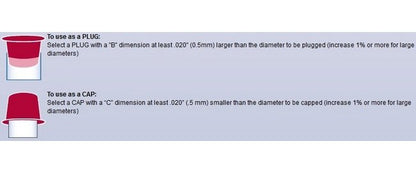

To use as a PLUG: Select a PLUG with a "B" dimension at least 0.020 in (0.5 mm) larger than the diameter to be plugged (increase 1% or more for large diameters)To use as a CAP: Select a CAP with a “C” dimension at least 0.020 in (0.5 mm) smaller than the diameter to be capped (increase 1% or more for large diameters)
Manufacturing Notes 0
MOCAP stocks wide flange tapered plastic plug caps in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.
Specifications Box Quantity
1000

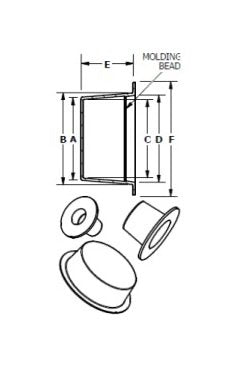

Specifications Flange Outer Diameter Dimension F
2.22 in | 56.4 mm
Specifications Large End Inside Diameter Dimension D
1.838 in | 46.7 mm
Specifications Large End Outer Diameter Dimension B
1.900 in | 48.3 mm
Specifications Length Dimension E
0.72 in | 18.3 mm
Specifications Material
Polyethylene
Specifications Micro Pack Quantity
20
Specifications Mini Pack Quantity
200
Specifications Small End Inside Diameter Dimension C
1.673 in | 42.5 mm
Specifications Small End Outer Diameter Dimension A
1.735 in | 44.1 mm
Specifications Standards
RoHS Compliant
