Wide Flange Tapered Plug Cap - Polyethylene Plug Caps
Wide Flange Tapered Plug Cap - Polyethylene Plug Caps
SKU:WID-4a1b5c
Versatile Wide Flange Tapered Plug Cap for sealing openings, made of Polyethylene, ideal for painting, masking, and sealing applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Wide Flange Tapered Plug Cap - Polyethylene Plug Caps
$49.99
Quantity: 1
Claim Your Seller Account
Wide Flange Tapered Plug Cap - Polyethylene Plug Caps
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

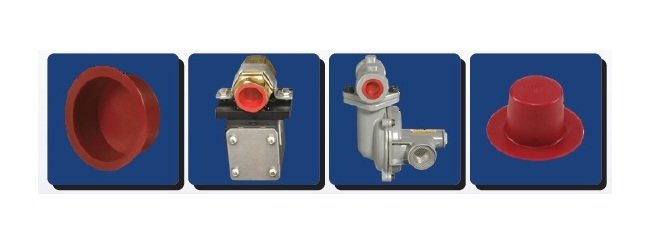

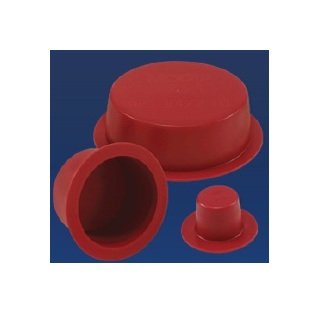

Our Wide Flange Tapered Plug Cap is a versatile solution for sealing a variety of openings, including threaded and non-threaded holes, pipe ends, and connector ports. Made of durable polyethylene material, these plug caps can withstand temperatures up to 175°F. Ideal for painting, coating, and masking processes, they are available in a range of sizes for immediate shipment. With dimensions meeting industry standards and offering ease of use as both plugs and caps, these MOCAP polyethylene plug caps are a cost-effective choice for your sealing needs.
Product Specifications
Applications 0

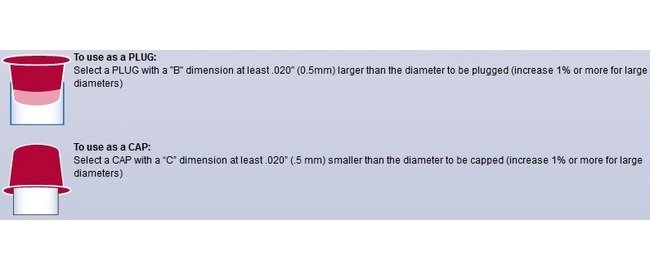

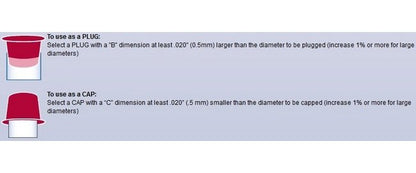

To use as a PLUG: Select a PLUG with a "B" dimension at least 0.020 in (0.5 mm) larger than the diameter to be plugged (increase 1% or more for large diameters)To use as a CAP: Select a CAP with a “C” dimension at least 0.020 in (0.5 mm) smaller than the diameter to be capped (increase 1% or more for large diameters)
Manufacturing Notes 0
MOCAP stocks wide flange tapered plastic plug caps in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.
Specifications Box Quantity
5000

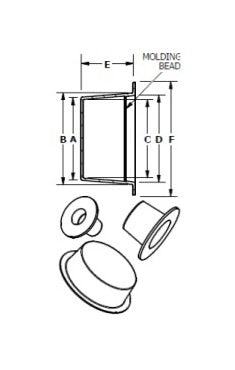

Specifications Flange Outer Diameter Dimension F
0.81 in | 20.6 mm
Specifications Large End Inside Diameter Dimension D
0.418 in | 10.6 mm
Specifications Large End Outer Diameter Dimension B
0.480 in | 12.2 mm
Specifications Length Dimension E
0.38 in | 9.7 mm
Specifications Material
Polyethylene
Specifications Micro Pack Quantity
100
Specifications Mini Pack Quantity
1000
Specifications Small End Inside Diameter Dimension C
0.363 in | 9.2 mm
Specifications Small End Outer Diameter Dimension A
0.425 in | 10.8 mm
Specifications Standards
RoHS Compliant
