Wieland 10-Pole Female Insert for Industrial Multipole Connectors
Wieland 10-Pole Female Insert for Industrial Multipole Connectors
SKU:IND-9ecf23
High-quality Wieland 10-Pole Female Insert for Industrial Multipole Connectors, 250V/10A, Crimp Connections, Gray Color, V0 Inflammability Class, 4 kV Impulse Voltage. RoHS & REACH-SVHC Compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 10-Pole Female Insert for Industrial Multipole Connectors
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 10-Pole Female Insert for Industrial Multipole Connectors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

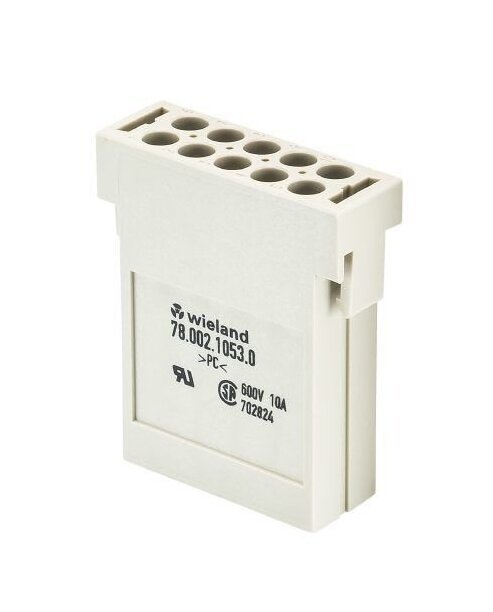

The Wieland 10-pole female insert is a high-quality modular connector designed for industrial multipole connectors. Rated for 250V/10A, this female insert features crimp connections with turned contacts for reliable performance. With a V0 inflammability class of insulation material, silver-plated contacts, and a rated impulse voltage of 4 kV, this gray-colored insert ensures safety and durability. Compliant with RoHS and REACH-SVHC standards, it meets industry requirements for quality and environmental responsibility.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Crimp
Connection Data Number Of Poles
10
Connection Data Protective Contact
No
Connection Data Total Number Of Poles Without Ground Contact
10
Connection Data With Wire Protection
No
Contacts Contact Resistance
⤠5 mΩ
Contacts Surface
Silver-Plated
Contacts Wire Strip Length
8 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Mating Cycles
500
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
Female Insert
General Modular Version
Yes
General Pollution Degree
3
Model With Housing
No
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Din En 61984 Maximum Rated Voltage Faceground
250 V
Technical Data Din En 61984 Nominal Current
10 A
Technical Data Din En 61984 Nominal Voltage
250 V
Technical Data Din En 61984 Rated Impulse Voltage
4 kV
Technical Data Ulcsa Flexible Wire Conductor Cross Section
26-14 AWG
Technical Data Ulcsa Maximum Flexible Wire Conductor Cross Secti
2.5 mm²
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
240 V
Technical Data Ulcsa Minimum Flexible Wire Conductor Cross Secti
0.14 mm²
Technical Data Ulcsa Rated Current According Canadian Standards
10 A
Technical Data Ulcsa Rated Current According Underwriters Labora
10 A
