Wieland 10-Pole Multipole Connector Housing
Wieland 10-Pole Multipole Connector Housing
SKU:IND-f6beb1
Enhance connectivity with Wieland 10-Pole Connector Housing for industrial applications. Durable aluminum construction, UV-resistant with secure cable connections. Meets REACH-SVHC standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Wieland 10-Pole Multipole Connector Housing
$49.99
Quantity: 1
Claim Your Seller Account
Wieland 10-Pole Multipole Connector Housing
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

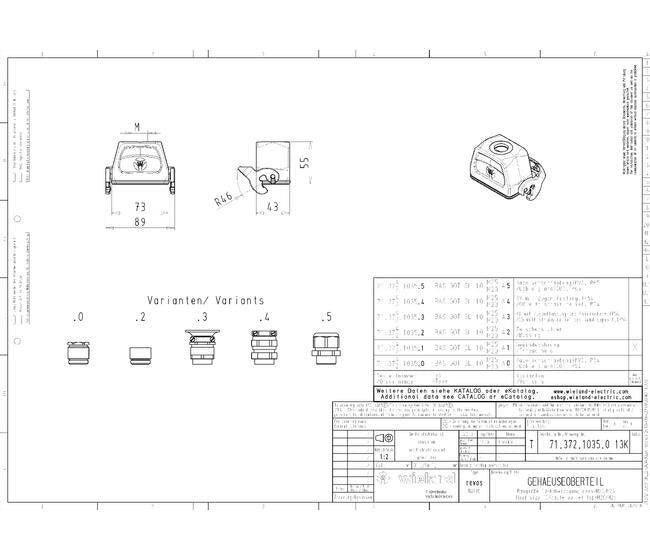

Upgrade your industrial connectivity with the Wieland HOOD BAS GOT GL 10 M20 A1 Multi-Pole Heavy-Duty Connector Housing. Constructed from durable aluminum with a powder coating for longevity, this housing features a single locking lever and M20 threaded hole for secure cable connections. With a low profile design and UV resistance, it ensures reliable performance in temperatures ranging from -40°C to 120°C. Measuring 89mm x 43mm x 53mm, this 10-pole connector housing provides efficient cable management for industrial applications while complying with REACH-SVHC standards.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC000437
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
Other
General Housing Material
Aluminum
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
HOOD BAS GOT GL 10 M20 A1
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
Above
Model Construction
10
Model Emc Version
No
Model Height
53 mm
Model Hinged Lid
No
Model Length
89 mm
Model Locking Mechanism
Single Locking Lever
Model Thread Size M
20
Model Type
Cable Coupler
Model Type Of Cable
Thread
Model Width
43 mm
Model With Cable Screw Gland
No
Product Compliance Reach Svhc Conformity Status
Compliant
Specifications Number Of Poles
10
Specifications Profile
Low
