Wieland 115AC-2W-8A Pluggable Relay Module
Wieland 115AC-2W-8A Pluggable Relay Module
SKU:COU-a32f85
Reliable Wieland 115AC-2W-8A coupling relay for industrial use. Width: 15.8mm. Voltage: 115V AC. 2 change-over contacts at 250V AC / 8A. RoHS & REACH-SVHC compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Wieland 115AC-2W-8A Pluggable Relay Module
$49.99
Quantity: 1
Claim Your Seller Account
Wieland 115AC-2W-8A Pluggable Relay Module
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 115AC-2W-8A Pluggable Relay Module is a reliable coupling relay designed for industrial applications. With a width of 15.8mm and a voltage rating of 115V AC, this module features 2 change-over contacts rated at 250V AC / 8A. It comes complete with a socket and offers a screw connection for easy installation. This mono stable relay module is RoHS and REACH-SVHC compliant, ensuring adherence to environmental standards.
Product Specifications
Classification Eclass 81 Classification
27371601
Classification Etim 40 Classification
EC001437
Classification Etim 50 Classification
EC001437
Classification Etim 60 Classification
EC001437
Classification Etim 70 Classification
EC001437

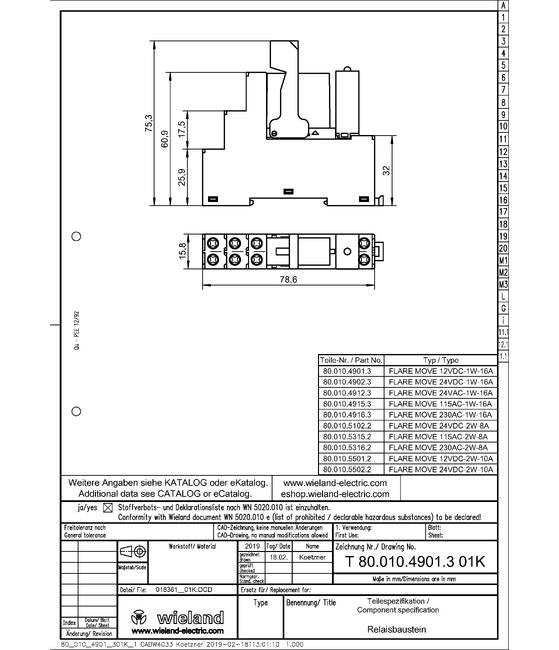

Dimensions Depth
76 mm
Dimensions Height
78.6 mm
Dimensions Width
15.8 mm
General Brands
Wieland
General Complete With Socket
Yes
General Connection Type
Screw Connection
General Degree Of Protection Ip
IP20
General Detachable Clamps
No
General Forced Guided Contacts
No
General Function Drive
Mono Stable
General Model
RELAY MODULE FLARE MOVE 115AC-2W-8A
General Number Of Change Over Contacts
2
General Polarization Drive
Polarity Free
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Direct Current Dc Lower Nominal Voltage
92 V
Technical Data Direct Current Dc Upper Nominal Voltage
126.5 V
Technical Data Maximum Rated Frequency Auxiliarycontrol Current
60 Hz
Technical Data Minimum Direct Current Dc Nominal Voltage
115 V
Technical Data Minimum Rated Frequency Auxiliarycontrol Current
50 Hz
Technical Data Rated Frequency Auxiliarycontrol Current Circuit
50 to 60 Hz
Technical Data Type Of Excitation
Alternating Current (AC)
