Wieland 12.1
Wieland 12.1
SKU:HMI-1f857b
Discover the Wieland 12.1" HMI Panel: RISC ARM9 CPU, Industrial Ethernet, Modbus TCP, EN61000 compliant, RoHS certified, IP66 protection.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
Wieland 12.1
$1,599.99
Quantity: 1
Claim Your Seller Account
Wieland 12.1
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

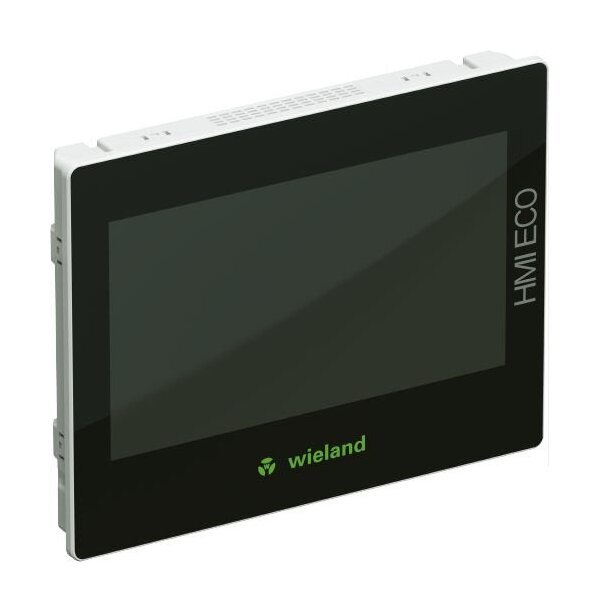

The Wieland 12.1 Inch Diagonal Screen HMI Panel offers a high-resolution TFT display with 1024x768 pixels and IP66 protection. With a RISC ARM9 32 Bit CPU, this panel is designed for industrial use, featuring Industrial Ethernet, Modbus TCP support, and compatibility with major PLC families. Its robust design meets EN61000 standards, UL certification, RoHS compliance, and features natural cooling for reliable operation in challenging environments. This HMI panel is programmable with hmiPLAN software, making it a versatile and efficient solution for industrial automation needs.
Product Specifications
Accessories Accessories
Part NumberHMI-Plan License (ZW.000.0170.0)DescriptionSingle-user license for hmiPLAN, configuration software for HMI applications and visualizationClassificationECLASS 11 - 27242592ECLASS 8.1 - 27249209ETIM 9.0 - EC002584ETIM 8.0 - EC002584ETIM 7.0 - EC002584ETIM 6.0 - EC002584ETIM 5.0 - EC002584ETIM 4.0 - EC002584
Classification Eclass 11 Classification
27242301
Classification Eclass 81 Classification
27242301
Classification Etim 40 Classification
EC001414
Classification Etim 50 Classification
EC001414
Classification Etim 60 Classification
EC001414
Classification Etim 70 Classification
EC001414
Classification Etim 80 Classification
EC001414
Classification Etim 90 Classification
EC001414
Dimensions Build In Depth
58.2 mm
Dimensions Cutout Height
228 mm
Dimensions Cutout Width
302 mm
Dimensions Height Of The Front
243.8 mm
Dimensions Weight
2 kg
Dimensions Width Of The Front
317.4 mm
Display Backlight Life
20000 h
Display Central Processing Unit Cpu Type
RISC ARM9 32 Bit
Display Maximum Colors
16 bits
Display Number Of Horizontal Pixels
1024
Display Number Of Vertical Pixels
768
Display Screen Diagonal
12.1 in
Display Touch Technology
Resistive Touch
Display Type Of Display
Thin Film Transistor (TFT) Colour Liquid Crystal Display (LCD) with Light Emitting Diode (LED) Backlight
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(a) | III-6(c) | III-7(a) | III-7(c)I
Specifications Model
HMI-ECO-121
Supply Circuit Direct Current Dc Rated Consumption
20 W
Supply Circuit Maximum Rated Supply Voltage At Direct Current Dc
26.4 V
Supply Circuit Minimum Rated Supply Voltage At Direct Current Dc
21.6 V
Supply Circuit Voltage Type
DC
Technical Data Approvals
Yes
Technical Data Battery Backed Ram
Yes
Technical Data Compatible Plc Families
Allen Bradley | Beckhoff | Schneider | Siemens | u.v.a. | Wago
Technical Data Cooling
Natural Cooling with Minimum 50 mm Distance to Environment
Technical Data Degree Of Protection Ip
IP66
Technical Data Power Supply Type
SELV (UL 508, UL 248)
