Wieland 12DC-1W-250V6A-F Spring Clamp Relay Module
Wieland 12DC-1W-250V6A-F Spring Clamp Relay Module
SKU:COU-5b2d0b
Get precise control with the Wieland 12DC-1W-250V6A-F Relay Module. Ideal for efficient operations with spring clamp terminals.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 12DC-1W-250V6A-F Spring Clamp Relay Module
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 12DC-1W-250V6A-F Spring Clamp Relay Module
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

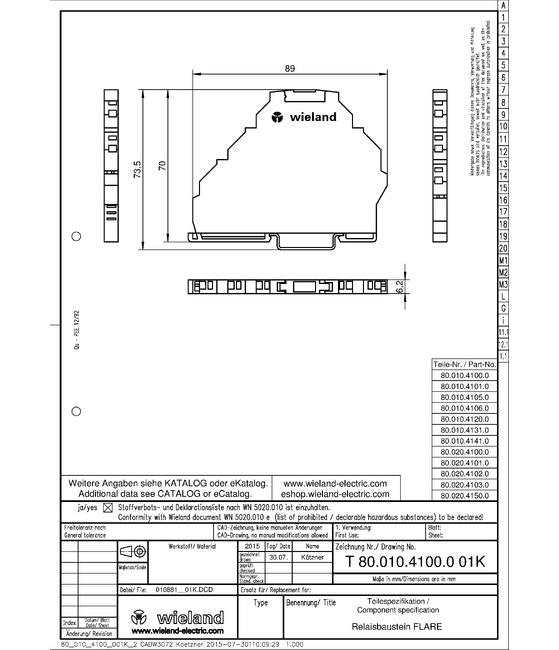

The Wieland 12DC-1W-250V6A-F Relay Module offers precise control and reliable performance. Featuring 1 change-over contact, spring clamp terminals, and a compact design with dimensions of 6.2mm width, 70mm depth, and 98mm height. With a direct current input of 12V, this relay module ensures seamless operations. Compliant with RoHS and REACH-SVHC standards for environmental safety.
Product Specifications
Classification Eclass 81 Classification
27371601
Classification Etim 30 Classification
EC001437
Classification Etim 40 Classification
EC001437
Classification Etim 50 Classification
EC001437
Classification Etim 60 Classification
EC001437
Classification Etim 70 Classification
EC001437
Dimensions Depth
70 mm
Dimensions Height
98 mm
Dimensions Width
6.2 mm
General Brands
Wieland
General Complete With Socket
Yes
General Connection Type
Spring Clamp Connection
General Degree Of Protection Ip
IP20
General Detachable Clamps
No
General Forced Guided Contacts
No
General Function Drive
Mono Stable
General Model
RELAY MODULE FLARE-12DC-1W-250V6A-F
General Number Of Change Over Contacts
1
General Polarization Drive
Polarity Free
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Direct Current Dc Lower Nominal Voltage
9.96 V
Technical Data Direct Current Dc Upper Nominal Voltage
15 V
Technical Data Minimum Direct Current Dc Nominal Voltage
12 V
Technical Data Type Of Excitation
Direct Current (DC)
