Wieland 12VDC Coupling Relay Module
Wieland 12VDC Coupling Relay Module
SKU:COU-8e662b
Reliable Wieland 12VDC Coupling Relay Module for industrial use, with 1 change-over contact rated at 250V AC/6A. RoHS and REACH-SVHC compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 12VDC Coupling Relay Module
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 12VDC Coupling Relay Module
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RELAY MODULE FLARE MOVE 12VDC-1W-6A is a high-quality coupling relay designed for industrial and institutional applications. With a direct current (DC) nominal voltage of 12V and a 1 change-over contact rated at 250V AC/6A, this relay module offers reliable and efficient performance. Featuring a screw connection and IP20 degree of protection, it ensures secure connectivity and safe operation. The unit is RoHS and REACH-SVHC compliant, meeting stringent environmental standards.
Product Specifications
Classification Eclass 81 Classification
27371601
Classification Etim 40 Classification
EC001437
Classification Etim 50 Classification
EC001437
Classification Etim 60 Classification
EC001437
Classification Etim 70 Classification
EC001437

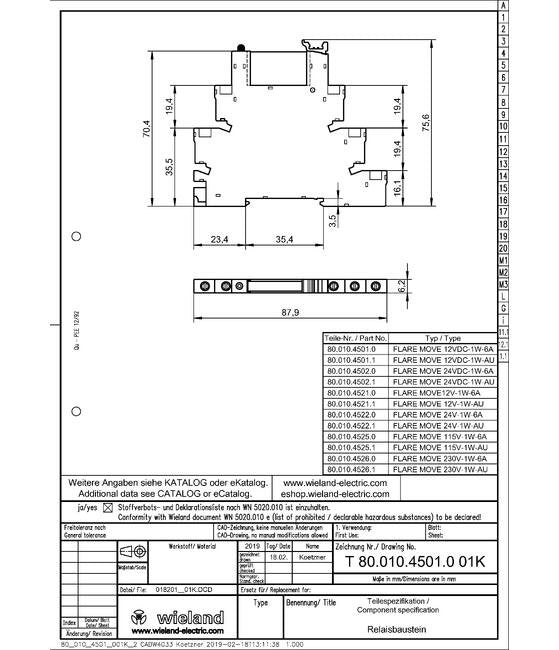

Dimensions Depth
76 mm
Dimensions Height
88 mm
Dimensions Width
6.2 mm
General Brands
Wieland
General Complete With Socket
Yes
General Connection Type
Screw Connection
General Degree Of Protection Ip
IP20
General Detachable Clamps
No
General Forced Guided Contacts
No
General Function Drive
Mono Stable
General Model
RELAY MODULE FLARE MOVE 12VDC-1W-6A
General Number Of Change Over Contacts
1
General Polarization Drive
Polarity Free
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Direct Current Dc Lower Nominal Voltage
9 V
Technical Data Direct Current Dc Upper Nominal Voltage
14.4 V
Technical Data Minimum Direct Current Dc Nominal Voltage
12 V
Technical Data Type Of Excitation
Direct Current (DC)
