Wieland 12VDC Coupling Relay Module 10A
Wieland 12VDC Coupling Relay Module 10A
SKU:COU-640a7c
High-quality Wieland 12VDC Coupling Relay Module with screw connection, 2 change-over contacts, and IP20 protection. Compliant with RoHS and REACH-SVHC standards.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Wieland 12VDC Coupling Relay Module 10A
$34.99
Quantity: 1
Claim Your Seller Account
Wieland 12VDC Coupling Relay Module 10A
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RELAY MODULE FLARE MOVE 12VDC-2W-10A is a high-quality coupling relay designed for reliable performance in various applications. With a screw connection type, this relay module features 2 change-over contacts, IP20 protection, and a polarity-free drive for ease of use. It operates within a range of 8.76V to 21V DC, making it versatile for different voltage requirements. Complete with socket, this mono stable relay module is compliant with RoHS and REACH-SVHC standards, ensuring environmental sustainability.
Product Specifications
Classification Eclass 81 Classification
27371601
Classification Etim 40 Classification
EC001437
Classification Etim 50 Classification
EC001437
Classification Etim 60 Classification
EC001437
Classification Etim 70 Classification
EC001437

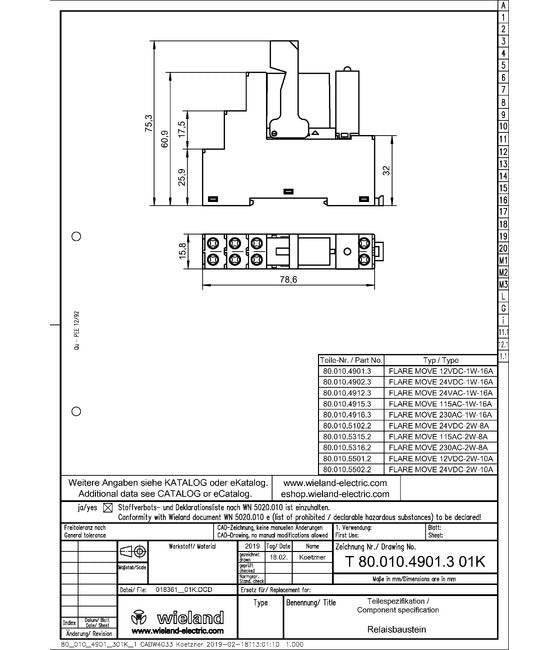

Dimensions Depth
76 mm
Dimensions Height
78.6 mm
Dimensions Width
15.8 mm
General Brands
Wieland
General Complete With Socket
Yes
General Connection Type
Screw Connection
General Degree Of Protection Ip
IP20
General Detachable Clamps
No
General Forced Guided Contacts
No
General Function Drive
Mono Stable
General Model
RELAY MODULE FLARE MOVE 12VDC-2W-10A
General Number Of Change Over Contacts
2
General Polarization Drive
Polarity Free
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Direct Current Dc Lower Nominal Voltage
8.76 V
Technical Data Direct Current Dc Upper Nominal Voltage
21 V
Technical Data Minimum Direct Current Dc Nominal Voltage
12 V
