Wieland 16-Pole Aluminum Industrial Connector Housing with M25 Cable Gland
Wieland 16-Pole Aluminum Industrial Connector Housing with M25 Cable Gland
SKU:IND-217c1d
Durable Wieland 16-Pole Aluminum Industrial Connector Housing with M25 Cable Gland for secure and reliable connections in industrial environments.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Wieland 16-Pole Aluminum Industrial Connector Housing with M25 Cable Gland
$79.99
Quantity: 1
Claim Your Seller Account
Wieland 16-Pole Aluminum Industrial Connector Housing with M25 Cable Gland
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

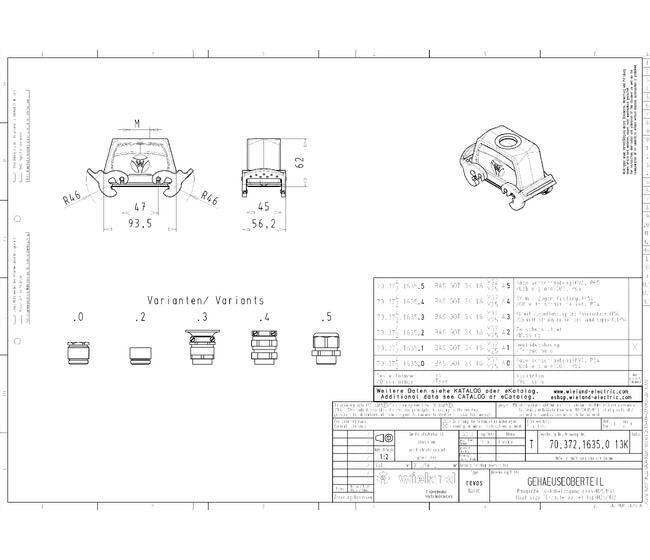

The Wieland HOOD BAS GOT GK 16 M25 A0 Multi-Pole Heavy-Duty Industrial Connector Housing is a robust solution designed for industrial applications. Constructed from durable aluminum with a gray powder coating, this connector housing features a double locking lever for secure cable connections. With a cable gland M25 for IP54 protection, this low-profile housing ensures reliable performance in a wide temperature range from -40°C to 120°C. Ideal for cable coupler applications with 16 poles, this Wieland connector meets RoHS standards and offers exceptional reliability and longevity in demanding environments.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC000437
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
IP54
General Housing Material
Aluminum
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
HOOD BAS GOT GK 16 M25 A0
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
Above
Model Construction
16
Model Emc Version
No
Model Height
62 mm
Model Hinged Lid
No
Model Length
94 mm
Model Locking Mechanism
Double Locking Levers
Model Thread Size M
25
Model Type
Cable Coupler
Model Type Of Cable
Gland nut
Model Width
56 mm
Model With Cable Screw Gland
Yes
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Specifications Number Of Poles
16
Specifications Profile
Low
