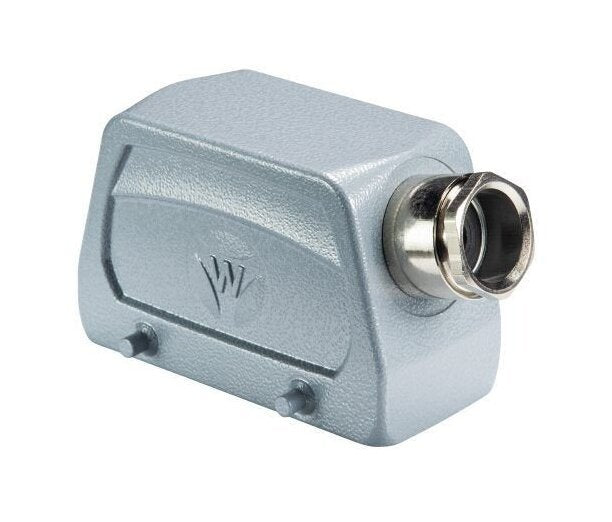

The Wieland HOOD BAS GOT GA 16 M25 A0 Multi-Pole Heavy-Duty Industrial Connector Housing is a robust solution designed for industrial applications. Constructed from durable aluminum with a powder coating, this housing features a double locking lever mechanism and a cable gland M25 for secure cable connections. With a low-profile design and IP54 protection, it ensures reliable performance in demanding environments. UV resistant and compliant with RoHS standards, this 16-pole connector housing offers a temperature range from -40°C to 120°C, suitable for a wide range of industrial settings.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC000437
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
IP54
General Housing Material
Aluminum
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
HOOD BAS GOT GA 16 M25 A0
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
Sideways
Model Construction
16
Model Emc Version
No
Model Height
60 mm
Model Hinged Lid
No
Model Length
94 mm
Model Locking Mechanism
Double Locking Levers
Model Thread Size M
25
Model Type
Male
Model Type Of Cable
Gland nut
Model Width
56 mm
Model With Cable Screw Gland
Yes
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Specifications Number Of Poles
16
Specifications Profile
Low
