Wieland 16-Pole Heavy-Duty Industrial Connector Housing
Wieland 16-Pole Heavy-Duty Industrial Connector Housing
SKU:IND-493b01
Durable Wieland 16-Pole Industrial Connector Housing with aluminum construction, single locking lever, IP54 protection, and RoHS compliance.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Wieland 16-Pole Heavy-Duty Industrial Connector Housing
$79.99
Quantity: 1
Claim Your Seller Account
Wieland 16-Pole Heavy-Duty Industrial Connector Housing
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland BOTTOM BAS GUT GK 16 A Multi-Pole Heavy-Duty Industrial Connector Housing is a robust and reliable solution designed for industrial applications. Constructed with high-quality aluminum and a single locking lever, this connector housing offers durability and security. With a powder coating surface and a low profile design, it provides protection against various elements and fits seamlessly into compact spaces. This housing is IP54 rated, UV resistant, and can operate within a temperature range of -40°C to 120°C, ensuring performance in challenging environments. With 16 poles and meeting RoHS conformity standards, this Wieland connector housing excels in both functionality and compliance.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC000437
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
IP54
General Housing Material
Aluminum
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
BOTTOM BAS GUT GK 16 A
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
None
Model Construction
16
Model Emc Version
No

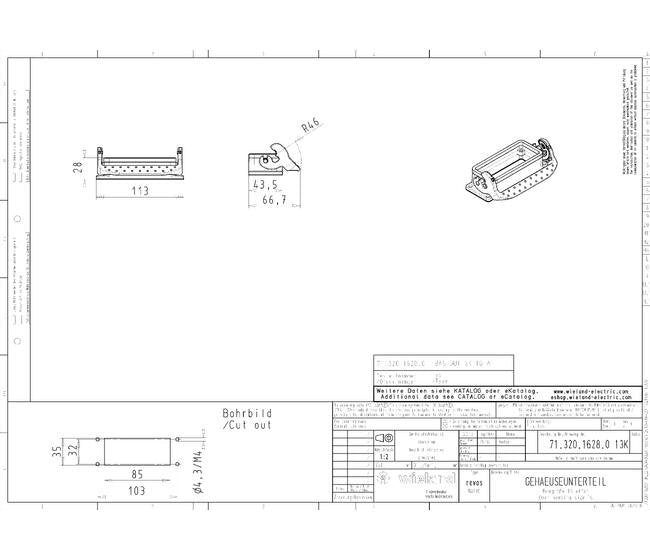

Model Height
28 mm
Model Hinged Lid
No
Model Length
113 mm
Model Locking Mechanism
Single Locking Lever
Model Type
Equipment Mounted (Feed-Through)
Model Type Of Cable
None
Model Width
44 mm
Model With Cable Screw Gland
No
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(a)
Specifications Number Of Poles
16
Specifications Profile
Low
