Wieland 16-Pole Heavy-Duty Industrial Connector Housing
Wieland 16-Pole Heavy-Duty Industrial Connector Housing
SKU:IND-a8cc83
Top-quality Wieland 16-Pole Industrial Connector Housing with durable aluminum construction, single locking lever, M25 thread, and RoHS compliance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Wieland 16-Pole Heavy-Duty Industrial Connector Housing
$89.99
Quantity: 1
Claim Your Seller Account
Wieland 16-Pole Heavy-Duty Industrial Connector Housing
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

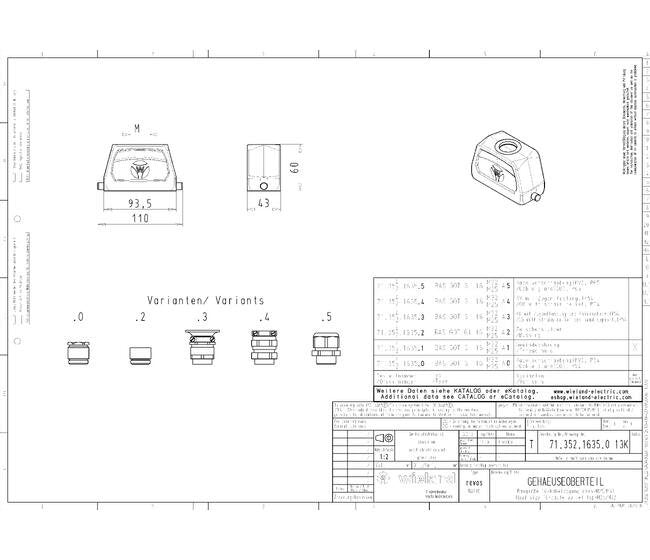

The Wieland HOOD BAS GOT GI 16 M25 A2 Multi-Pole Heavy-Duty Industrial Connector Housing is a top-quality solution for industrial multipole connections. Constructed from durable aluminum with a gray powder coating, this housing features a single locking lever with a M25 thread size. With a temperature range from -40°C to 120°C, UV resistance, and RoHS compliance, it ensures reliability in various environments. This low-profile housing, measuring 94mm x 43mm x 60mm, provides secure cable entry above for 16 poles, meeting the highest industry standards for performance and safety.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC000437
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
Other
General Housing Material
Aluminum
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
HOOD BAS GOT GI 16 M25 A2
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
Above
Model Construction
16
Model Emc Version
No
Model Height
60 mm
Model Hinged Lid
No
Model Length
94 mm
Model Locking Mechanism
Single Locking Lever
Model Thread Size M
25
Model Type
Male
Model Type Of Cable
Intermediate support
Model Width
43 mm
Model With Cable Screw Gland
No
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(a); III-6(c)
Specifications Number Of Poles
16
Specifications Profile
Low
