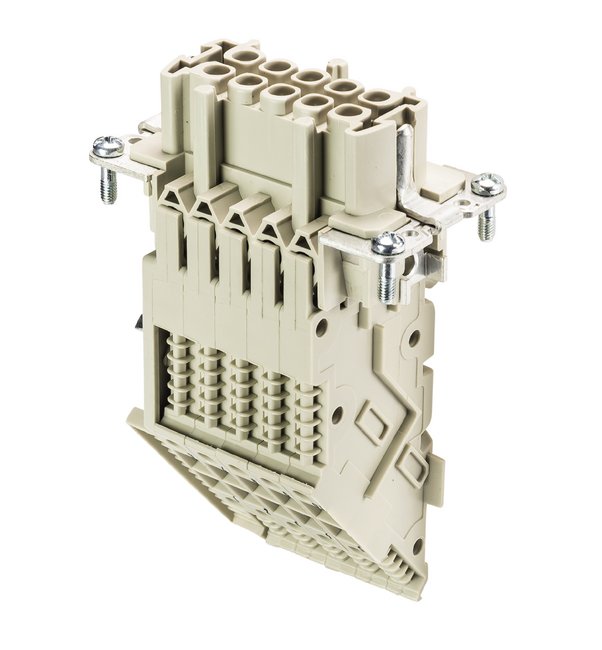

The Wieland BAS GAZSHLB16 4.0 50 Female Insert Multi-Pole Adapter is a high-quality industrial connector designed for critical applications. With a sturdy screw connection, this adapter features a 16-pole design with a dedicated ground connection and a double locking lever for secure attachment. It meets stringent UL/CSA standards with a maximum voltage of 600V and a rated current of 16A. The adapter is constructed with copper alloy contacts and tin-plated surfaces, ensuring reliable conductivity and durability. Suitable for temperatures ranging from -40°C to 120°C, this adapter is ideal for industrial multipole connector setups.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Screw Connection
Connection Data Maximum Solidstranded Conductor Cross Section
4 mm²
Connection Data Minimum Solidstranded Conductor Cross Section
0.5 mm²
Connection Data Number Of Poles
16
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
16
Connection Data With Wire Protection
Yes
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠3 mΩ
Contacts Surface
Tin-Plated
Contacts Wire Strip Length
12 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V2
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
BAS GAZSHLB16 4.0 50 Female Insert
General Modular Version
No
General Pollution Degree
3
General Size In Accordance With Din 43880
16
Model Construction Type
Long Design (6 Marking Fields)
Model Locking Mechanism
Double Locking Levers
Model Position Of Protective Conductor
Left
Model With Housing
Yes
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Screws Head Design Clamping Screws Recommended Torque Slot
M3/0.5-0.7 N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
500 V
Technical Data Din En 61984 Nominal Voltage
500 V
Technical Data Din En 61984 Rated Impulse Voltage
6 kV
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
