Wieland 2 and 3 Pole Black Coding Distributor Block
Wieland 2 and 3 Pole Black Coding Distributor Block
SKU:CIR-f43359
Premium 2/3 Pole Black Coding Distributor Block for 250V applications. IP69 & RoHS compliant.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Wieland 2 and 3 Pole Black Coding Distributor Block
$35.99
Quantity: 1
Claim Your Seller Account
Wieland 2 and 3 Pole Black Coding Distributor Block
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

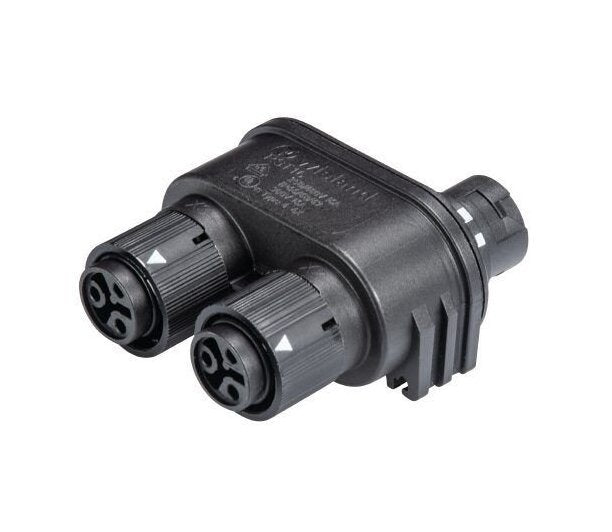

The Wieland 2 and 3 Pole Black Coding Distributor Block is a high-quality distribution block suitable for applications up to 250V with PE. With self-locking capability, it features black color coding for easy identification. This distributor block is IP69 and Type 4X rated, ensuring reliable performance in challenging environments. It complies with RoHS standards, making it an environmentally friendly and safe choice for your electrical connections.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27440603
Classification Etim 50 Classification
EC002567
Classification Etim 60 Classification
EC002567
Classification Etim 70 Classification
EC002567

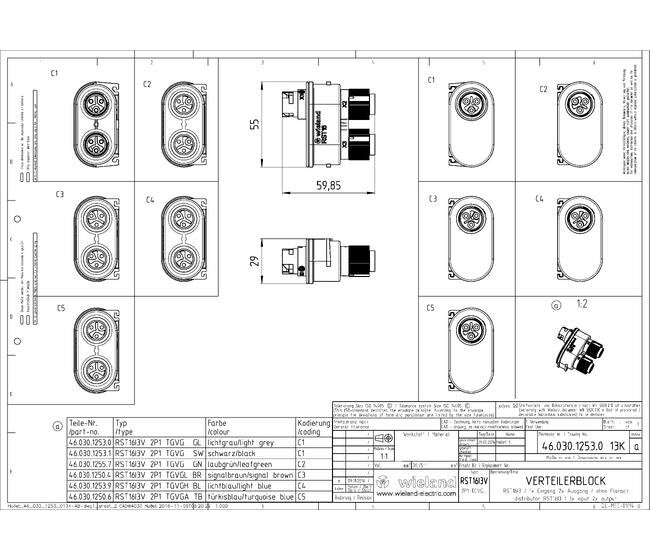

Dimensions Height
55 mm
Dimensions Length
60 mm
Dimensions Width
29 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Lockable
Self-Locking (Unlocking by Hand)
General Marking Of Poles
L | N | PE
General Pollution Degree
3
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.183 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Model Degree Of Protection Ip
IP66 | IP68 (3m;2h) | IP69
Model Number Of Inputs
1
Model Number Of Outputs
2
Model Type Of Distributor
Distribution Block
Model Type Of Fastening
Yes
Note Note
Technical details are subject to change
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Cable Diameter
5.0 to 9.5 mm
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Number Of Poles
2 | 3
Technical Data Rated Current
16 A
Technical Data Wire Size According To Canadian Ul Listed United
24 to 16 AWG
Technical Data Wire Size According To International Electrotechn
0.25 to 1.5 mm²
