Wieland 2-Pole Black Female Connector - Outdoor Rating
Wieland 2-Pole Black Female Connector - Outdoor Rating
SKU:CIR-4373de
High-quality Wieland 2-Pole Black Female Connector with 20A rating, ideal for outdoor use. Straight angle plug, screw connection, IP69 protection. Versatile wire size compatibility.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 2-Pole Black Female Connector - Outdoor Rating
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 2-Pole Black Female Connector - Outdoor Rating
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

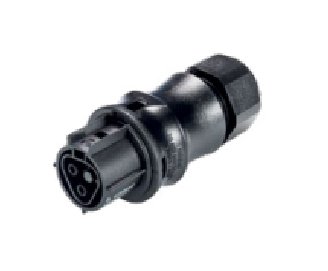

The Wieland 2-Pole Black Female Connector is a high-quality pluggable electrical connector designed for outdoor use. With a 20 A rated current, this connector is suitable for heavy-duty applications. It features a straight angle plug, screw connection, and IP69 degree of protection according to IEC standards. This connector supports a wide range of wire sizes from 0.75 to 6 mm², making it versatile for various wiring needs. Trust Wieland for reliable and durable electrical connectors that meet industry standards.
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Black
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
2
Specifications Type
Female
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
14 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
10 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Rated Current Canada
15 A
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
