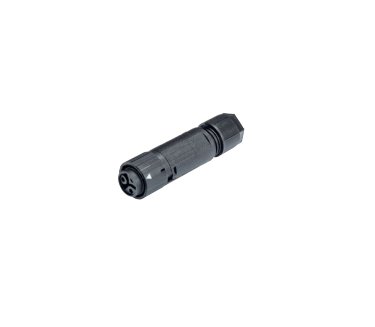

Wieland 2-Pole Black Female Electrical Connector - 16A, IP69 Rated
Wieland 2-Pole Black Female Electrical Connector - 16A, IP69 Rated
SKU:CIR-c3fa75
High-quality Wieland 2-Pole Black Female Electrical Connector - IP69 Rated, ideal for outdoor use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 2-Pole Black Female Electrical Connector - 16A, IP69 Rated
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 2-Pole Black Female Electrical Connector - 16A, IP69 Rated
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 2-Pole Black Female Pluggable Electrical Connector is a high-quality solution designed for outdoor use with an IP69 degree of protection. It features a straight angle plug with a screw connection, suitable for cables ranging from 5mm to 9.5mm in diameter. Rated for 16A and 600V, this connector meets IEC and cULus standards for reliable electrical connections in demanding environments. With a color-coded black contact carrier, it ensures secure and efficient electrical installations. Trust Wieland for durable and safe electrical connections.
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Connection Type
Screw Connection
General Number Of Poles
2
General Type
Female
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
300 V
Technical Data Current Disconnect Under Load
16 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
9.5 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
5 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
16 A
Technical Data Wire Size According To Canadian Ul Listed United
24 to 16 AWG
Technical Data Wire Size According To International Electrotechn
0.25 to 1.5 mm²
