Wieland 2-Pole Black Female Spring Clamp Connector - 20A
Wieland 2-Pole Black Female Spring Clamp Connector - 20A
SKU:CIR-6d643a
Reliable 2-Pole Black Female Spring Clamp Connector - 20A, Outdoor Rated
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 2-Pole Black Female Spring Clamp Connector - 20A
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 2-Pole Black Female Spring Clamp Connector - 20A
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

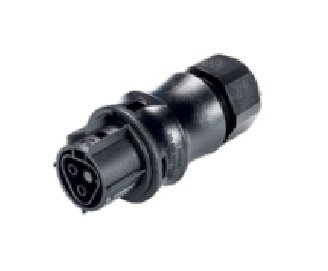

The Wieland 2-Pole Black Female Spring Clamp Connector is a reliable solution for outdoor electrical connections. Featuring a straight angle plug and a durable spring clamp connection, this connector is designed for cables ranging from 10mm to 14mm in diameter. With a high degree of protection (IP69), it can handle voltages up to 600V and currents of 20A. Compliant with IEC standards for wire size and Canadian cULus listings, this connector ensures safe and efficient power distribution in a compact and weather-resistant design.
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Black
Specifications Connection Type
Spring Clamp Connection
Specifications Number Of Poles
2
Specifications Type
Female
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
14 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
10 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Rated Current Canada
15 A
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
