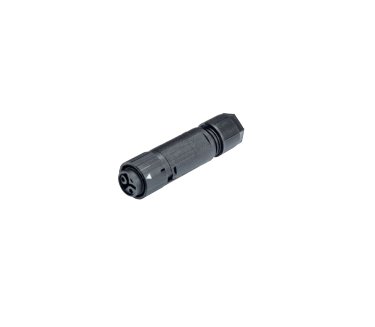

Wieland 2-Pole Female Pluggable Electrical Connector - Light Gray, 16A
Wieland 2-Pole Female Pluggable Electrical Connector - Light Gray, 16A
SKU:CIR-f77bfc
Reliable 16A 2-Pole Female Pluggable Connector for outdoor use, IP69 & Type 4X rated, compliant with IEC and cULus standards.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Wieland 2-Pole Female Pluggable Electrical Connector - Light Gray, 16A
$14.99
Quantity: 1
Claim Your Seller Account
Wieland 2-Pole Female Pluggable Electrical Connector - Light Gray, 16A
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 2-Pole Female Pluggable Electrical Connector is a high-quality solution for outdoor electrical connections. With a maximum rated voltage of 600V and a rated current of 16A, this connector ensures reliable performance. It features a screw connection for secure cable attachment and is IP69 and Type 4X rated for protection against harsh outdoor elements. Compliant with IEC and cULus standards, this connector offers versatility and durability for a wide range of applications.
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Light Gray
General Connection Type
Screw Connection
General Number Of Poles
2
General Type
Female
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
300 V
Technical Data Current Disconnect Under Load
16 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
9.5 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
5 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
16 A
Technical Data Wire Size According To Canadian Ul Listed United
24 to 16 AWG
Technical Data Wire Size According To International Electrotechn
0.25 to 1.5 mm²
