Wieland 2-Pole Signal Brown Female Pluggable Electrical Connector 16A
Wieland 2-Pole Signal Brown Female Pluggable Electrical Connector 16A
SKU:CIR-b44758
High-quality 2-Pole Female Pluggable Electrical Connector - 16A, IP69 & Type 4X rated. Ideal for outdoor use.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Wieland 2-Pole Signal Brown Female Pluggable Electrical Connector 16A
$12.99
Quantity: 1
Claim Your Seller Account
Wieland 2-Pole Signal Brown Female Pluggable Electrical Connector 16A
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

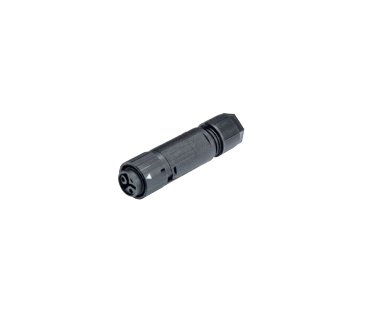

The Wieland 2-Pole Signal Brown Female Pluggable Electrical Connector is a high-quality connector suitable for outdoor use. With a rated current of 16A and maximum rated voltage of 600V, it offers reliable performance. Featuring IP69 and Type 4X protection ratings, this connector ensures durability in harsh environments. Compliant with IEC and cULus standards, it accommodates cable diameters ranging from 5mm to 9.5mm. Experience secure screw connections and ease of installation with this Wieland connector.
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Signal Brown
General Connection Type
Screw Connection
General Number Of Poles
2
General Type
Female
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
300 V
Technical Data Current Disconnect Under Load
16 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
9.5 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
5 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
16 A
Technical Data Wire Size According To Canadian Ul Listed United
24 to 16 AWG
Technical Data Wire Size According To International Electrotechn
0.25 to 1.5 mm²
