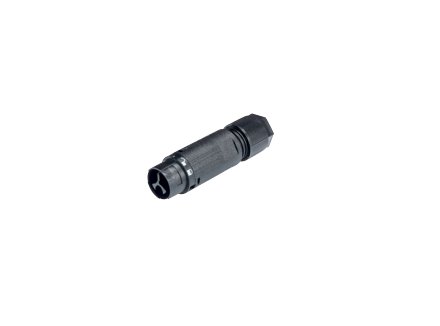

Wieland 2-Pole Signal Brown Male Pluggable Electrical Connector - 16A IP69 Rated

Name: Wieland 2-Pole Signal Brown Male Pluggable Electrical Connector - 16A IP69 Rated
Brand: Wieland Electric Inc.
SKU: CIR-0b6782
Price: 29.99 USD
Availability: OutOfStock

SKU:CIR-0b6782

Reliable Wieland 2-Pole Signal Brown Male Connector - 16A IP69 Rated for outdoor use.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Wieland 2-Pole Signal Brown Male Pluggable Electrical Connector is a high-quality, durable connector designed for outdoor use. With a rated current of 16 A and IP69 protection, it ensures reliable performance in demanding environments. This connector is designed with screw connections and can accommodate cable diameters ranging from 5mm to 9.5mm. Compliant with IEC and cULus standards, it meets the rigorous requirements of industrial and institutional applications.

Product Specifications

General Angle Of Plug

Straight

General Brands

Wieland

General Color Of Codingcontact Carrier

Signal Brown

General Connection Type

Screw Connection

General Number Of Poles

General Type

Male

Note Note

Technical details are subject to change

Technical Data Alternating Current Ac Voltage Disconnect Under L

300 V

Technical Data Current Disconnect Under Load

16 A

Technical Data Degree Of Protection According To Canadian Ul Lis

Type 4X

Technical Data Degree Of Protection According To International E

IP69

Technical Data Maximum Cable Diameter

9.5 mm

Technical Data Maximum Rated Voltage

600 V

Technical Data Minimum Cable Diameter

5 mm

Technical Data Minimum Rated Voltage

250 V | 400 V

Technical Data Rated Current

16 A

Technical Data Wire Size According To Canadian Ul Listed United

24 to 16 AWG

Technical Data Wire Size According To International Electrotechn

0.25 to 1.5 mmÂ²
