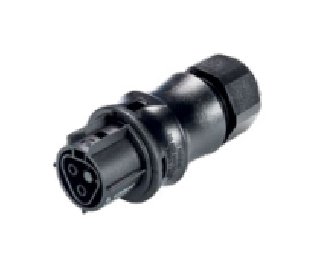

Wieland 2 Poles Black Female Connector - 20A, Outdoor Rated
Wieland 2 Poles Black Female Connector - 20A, Outdoor Rated
SKU:CIR-8e1a72
High-quality Wieland 2 Poles Black Female Connector - 20A, Outdoor Rated for secure outdoor electrical connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 2 Poles Black Female Connector - 20A, Outdoor Rated
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 2 Poles Black Female Connector - 20A, Outdoor Rated
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 2 Poles Black Female Connector is a top-quality pluggable electrical connector designed for outdoor use. With a straight angle of plug and spring clamp connection, it ensures secure and reliable connections. Rated for up to 600V and 20A, it accommodates cable diameters from 6mm to 10mm, meeting strict IEC and cULus wire size standards. Its IP69 and Type 4X/6P protection ratings make it suitable for demanding environments. Stay compliant with industry standards while enjoying durable performance with this connector.
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Black
Specifications Connection Type
Spring Clamp Connection
Specifications Number Of Poles
2
Specifications Type
Female
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Rated Current Canada
15 A
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
