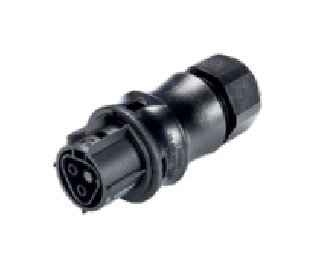

Wieland 2 Poles Signal Brown Female Connector 20A
Wieland 2 Poles Signal Brown Female Connector 20A
SKU:CIR-058da5
Reliable and waterproof Wieland 2-Pole Signal Brown Female Connector with 20A current rating for secure outdoor electrical connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 2 Poles Signal Brown Female Connector 20A
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 2 Poles Signal Brown Female Connector 20A
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 2 Poles Signal Brown Female Connector is a durable and reliable electrical connector designed for outdoor use. With a straight angle plug, screw connection, and IP69 protection level, this connector ensures secure and waterproof electrical connections. It supports a rated current of 20 A and voltages up to 600V, meeting international standards for cable diameter and wire sizes. Ideal for outdoor applications requiring high performance and weather resistance.
Product Specifications
Note Note
Technical details are subject to change
Specifications Angle Of Plug
Straight
Specifications Color Of Codingcontact Carrier
Signal Brown
Specifications Connection Type
Screw Connection
Specifications Number Of Poles
2
Specifications Type
Female
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
14 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
10 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
20 A
Technical Data Rated Current Canada
15 A
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
