Wieland 230AC-2W-8A Screw Connection Relay Module
Wieland 230AC-2W-8A Screw Connection Relay Module
SKU:COU-a37bb6
Compact Wieland 230AC-2W-8A solid state relay with screw connection, 2 change-over contacts, and IP20 protection.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Wieland 230AC-2W-8A Screw Connection Relay Module
$45.99
Quantity: 1
Claim Your Seller Account
Wieland 230AC-2W-8A Screw Connection Relay Module
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

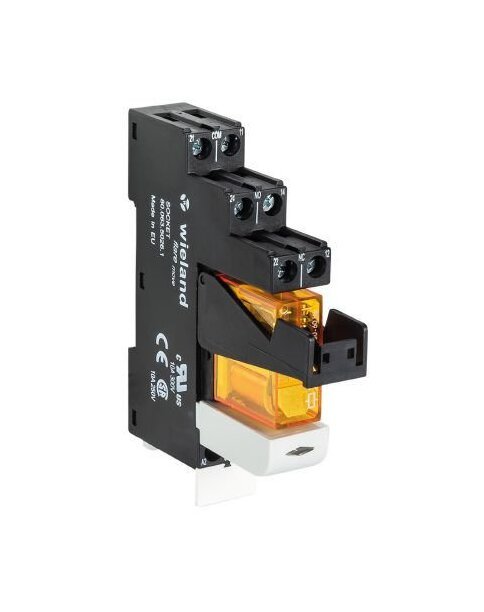

The Wieland RELAY MODULE FLARE MOVE 230AC-2W-8A is a versatile solid state relay designed for industrial applications. With a width of only 15.8mm, it features a screw connection, 2 change-over contacts rated at 250v AC / 8A, and a nominal operating voltage of 230v AC. This mono stable relay is polarity free, IP20 rated, and comes complete with a socket for easy installation. Compliant with RoHS and REACH-SVHC standards.
Product Specifications
Classification Eclass 81 Classification
27371601
Classification Etim 40 Classification
EC001437
Classification Etim 50 Classification
EC001437
Classification Etim 60 Classification
EC001437
Classification Etim 70 Classification
EC001437
Dimensions Depth
76 mm
Dimensions Height
78.6 mm
Dimensions Width
15.8 mm
General Brands
Wieland
General Complete With Socket
Yes
General Connection Type
Screw Connection
General Degree Of Protection Ip
IP20
General Detachable Clamps
No
General Forced Guided Contacts
No
General Function Drive
Mono Stable
General Model
RELAY MODULE FLARE MOVE 230AC-2W-8A
General Number Of Change Over Contacts
2
General Polarization Drive
Polarity Free
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Direct Current Dc Lower Nominal Voltage
184 V
Technical Data Direct Current Dc Upper Nominal Voltage
253 V
Technical Data Maximum Rated Frequency Auxiliarycontrol Current
60 Hz
Technical Data Minimum Direct Current Dc Nominal Voltage
230 V
Technical Data Minimum Rated Frequency Auxiliarycontrol Current
50 Hz
Technical Data Rated Frequency Auxiliarycontrol Current Circuit
50 to 60 Hz
Technical Data Type Of Excitation
Alternating Current (AC)
