Wieland 230V-1W-6A Screw Connection Relay Module
Wieland 230V-1W-6A Screw Connection Relay Module
SKU:COU-fa4ce3
Reliable 230V-1W-6A relay module for efficient and safe operation. Compact design with screw connection, IP20 protection, RoHS and REACH-SVHC compliant.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Wieland 230V-1W-6A Screw Connection Relay Module
$45.99
Quantity: 1
Claim Your Seller Account
Wieland 230V-1W-6A Screw Connection Relay Module
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RELAY MODULE FLARE MOVE 230V-1W-6A is a reliable coupling relay suitable for a wide range of applications. With a nominal operating voltage of 230V AC/DC and 1 change-over contact rated at 250V AC/6A, this solid state relay ensures efficient and safe operation. Featuring a compact design with a width of 6.2mm, screw connection type, and IP20 protection, this relay module is easy to install and offers excellent electrical insulation. Compliant with RoHS and REACH-SVHC standards, it meets environmental requirements for sustainable procurement.
Product Specifications
Classification Eclass 81 Classification
27371601
Classification Etim 40 Classification
EC001437
Classification Etim 50 Classification
EC001437
Classification Etim 60 Classification
EC001437
Classification Etim 70 Classification
EC001437

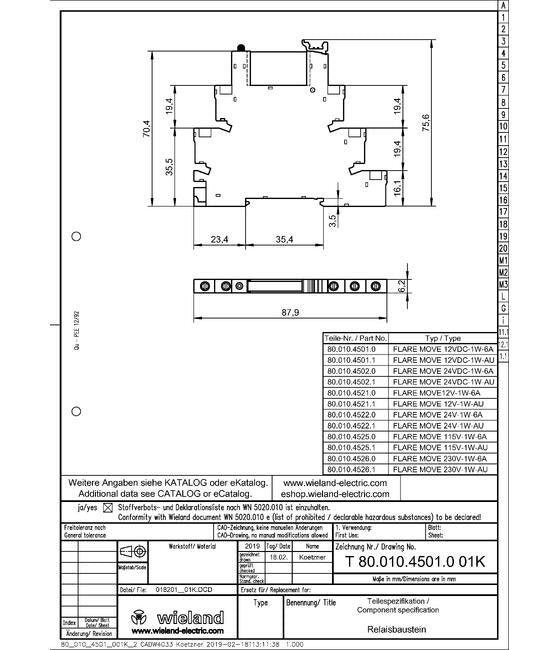

Dimensions Depth
76 mm
Dimensions Height
88 mm
Dimensions Width
6.2 mm
General Brands
Wieland
General Complete With Socket
Yes
General Connection Type
Screw Connection
General Degree Of Protection Ip
IP20
General Detachable Clamps
No
General Forced Guided Contacts
No
General Function Drive
Mono Stable
General Model
RELAY MODULE FLARE MOVE 230V-1W-6A
General Number Of Change Over Contacts
1
General Polarization Drive
Polarity Free
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Direct Current Dc Lower Nominal Voltage
184 V
Technical Data Direct Current Dc Upper Nominal Voltage
253 V
Technical Data Maximum Rated Frequency Auxiliarycontrol Current
60 Hz
Technical Data Minimum Direct Current Dc Nominal Voltage
230 V
Technical Data Minimum Rated Frequency Auxiliarycontrol Current
50 Hz
Technical Data Rated Frequency Auxiliarycontrol Current Circuit
50 to 60 Hz
Technical Data Type Of Excitation
Alternating Current (AC)/Direct Current (DC)
