Wieland 24-Pole Aluminum Industrial Connector Housing with M25 Threaded Hole
Wieland 24-Pole Aluminum Industrial Connector Housing with M25 Threaded Hole
SKU:IND-56adbe
High-quality Wieland industrial connector housing - Aluminum construction, 24 poles, M25 threaded hole, UV resistant, REACH compliant, ideal for industrial use.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Wieland 24-Pole Aluminum Industrial Connector Housing with M25 Threaded Hole
$79.99
Quantity: 1
Claim Your Seller Account
Wieland 24-Pole Aluminum Industrial Connector Housing with M25 Threaded Hole
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

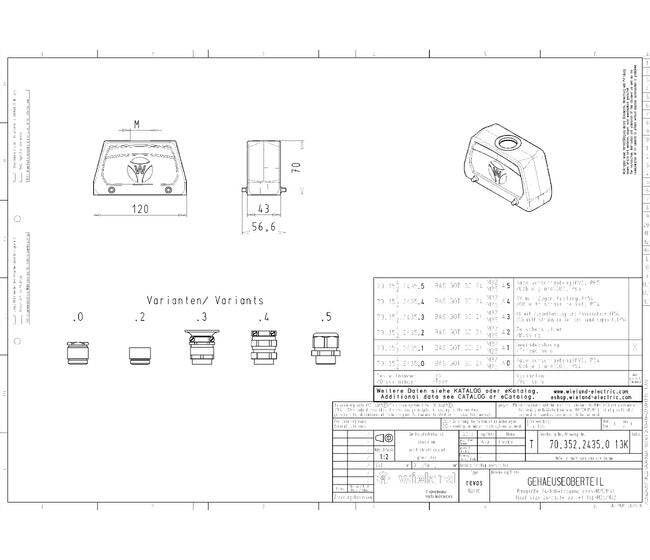

The Wieland HOOD BAS GOT GC 24 M25 A1 Multi-Pole Heavy-Duty Industrial Connector Housing is a premium solution for industrial multipole connections. Constructed from durable aluminum with a gray powder coating, this housing offers exceptional protection. Featuring a low-profile design, double locking levers, and a Type M25 threaded hole, it ensures secure and reliable connections. With a temperature range from -40°C to 120°C, UV resistance, and compliance with REACH regulations, this housing excels in demanding environments.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC000437
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
Other
General Housing Material
Aluminum
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
HOOD BAS GOT GC 24 M25 A1
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
Above
Model Construction
24
Model Emc Version
No
Model Height
60 mm
Model Hinged Lid
No
Model Length
120 mm
Model Locking Mechanism
Double Locking Levers
Model Thread Size M
25
Model Type
Male
Model Type Of Cable
Thread
Model Width
57 mm
Model With Cable Screw Gland
No
Product Compliance Reach Svhc Conformity Status
Compliant
Specifications Number Of Poles
24
Specifications Profile
Low
