Wieland 24-Pole Heavy-Duty Industrial Connector Housing
Wieland 24-Pole Heavy-Duty Industrial Connector Housing
SKU:IND-7a8b12
Durable Wieland 24-pole industrial connector housing with IP54 protection, double locking lever, and M25 cable gland for secure connections.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Wieland 24-Pole Heavy-Duty Industrial Connector Housing
$89.99
Quantity: 1
Claim Your Seller Account
Wieland 24-Pole Heavy-Duty Industrial Connector Housing
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

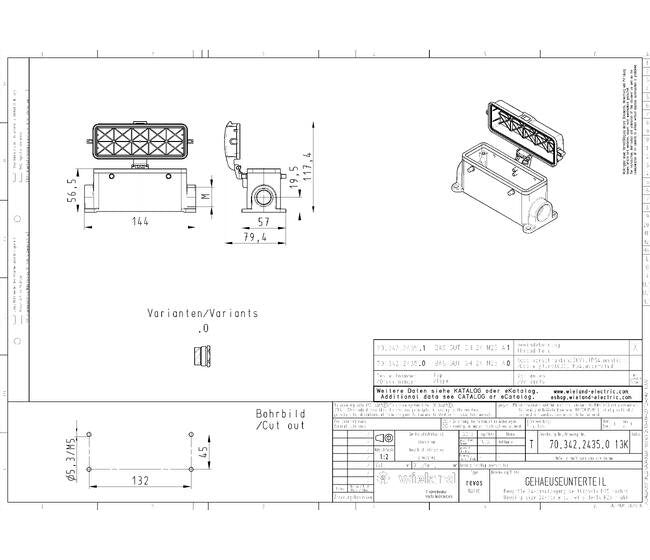

The Wieland BOTTOM BAS GUT GH 24 M25 A0 Multi-Pole Heavy-Duty Industrial Connector Housing is a robust solution designed for industrial applications. Constructed from durable aluminum with a powder coating in gray, this housing features a double locking lever for secure connections. With a cable gland M25 on the right side and a protective cover rated IP54, it ensures reliable performance in challenging environments. UV-resistant and compliant with RoHS standards, this low-profile housing operates between -40°C to 120°C, making it ideal for a wide range of industrial settings.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC000437
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
IP54
General Housing Material
Aluminum
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
BOTTOM BAS GUT GH 24 M25 A0
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
Sideways
Model Construction
24
Model Emc Version
No
Model Height
57 mm
Model Hinged Lid
Yes
Model Length
144 mm
Model Locking Mechanism
Double Locking Levers
Model Thread Size M
25
Model Type
Surface Mounting (Base)
Model Type Of Cable
Gland nut
Model Width
57 mm
Model With Cable Screw Gland
Yes
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(a); III-6(c)
Specifications Number Of Poles
24
Specifications Profile
Low
