Wieland 24-Pole Industrial Connector Housing

Name: Wieland 24-Pole Industrial Connector Housing
Brand: Wieland Electric Inc.
SKU: IND-f53213
Price: 89.99 USD
Availability: OutOfStock

SKU:IND-f53213

Durable Wieland 24-Pole Industrial Connector Housing for secure and reliable connections in industrial settings.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

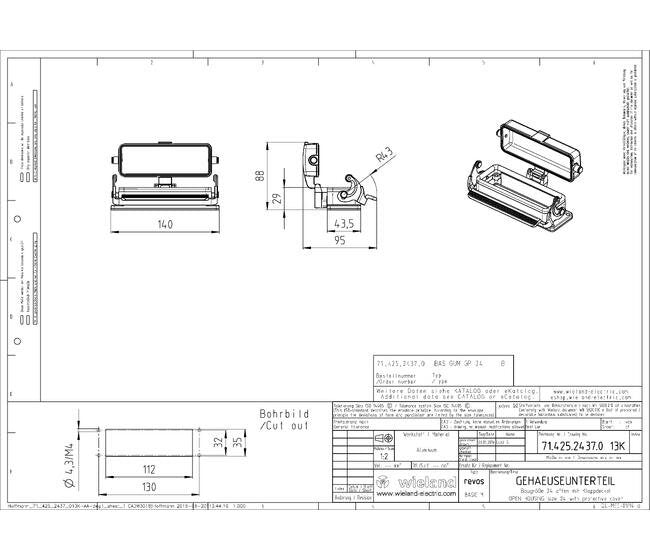

The Wieland BOTTOM BAS GUM GP 24 B Multi-Pole Heavy-Duty Industrial Connector Housing is a top-tier solution for industrial connectivity. Constructed from durable aluminum, this housing ensures reliable performance in demanding environments. Featuring a single locking lever and protective cover, this 24-pole housing offers secure connections and safety. With a low-profile design and UV resistance, it withstands harsh conditions from -40°C to 120°C. Measuring 140mm x 44mm x 29mm, it's ideal for equipment-mounted applications.

Product Specifications

Classification Eclass 81 Classification

27440202

Classification Etim 30 Classification

EC000437

Classification Etim 40 Classification

EC000437

Classification Etim 60 Classification

EC000437

Classification Etim 70 Classification

EC000437

General Brands

Wieland

General Color

Gray

General Housing Material

Aluminum

General Inflammability Class Of Insulation Material According Wi

Other

General Maximum Operating Temperature Range

120 ÂºC

General Minimum Operating Temperature Range

-40 ÂºC

General Model

BOTTOM BAS GUM GP 24 B

General Surface

Bare

General Ultraviolet Uv Resistant

Yes

Model Cable Entry

None

Model Construction

Model Emc Version

Model Height

29 mm

Model Hinged Lid

Yes

Model Length

140 mm

Model Locking Mechanism

Single Locking Lever

Model Type

Equipment Mounted (Feed-Through)

Model Type Of Cable

Model Width

44 mm

Specifications Number Of Poles

Specifications Profile

Low
