Wieland 24DC-1W-250V6A-F Coupling Relay Module
Wieland 24DC-1W-250V6A-F Coupling Relay Module
SKU:COU-0ef73a
Wieland Coupling Relay Module, 1 Change-Over Contact, 24V DC Input, 250V AC / 6A Output, Compact Design, RoHS & REACH-SVHC Compliant
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 24DC-1W-250V6A-F Coupling Relay Module
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 24DC-1W-250V6A-F Coupling Relay Module
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

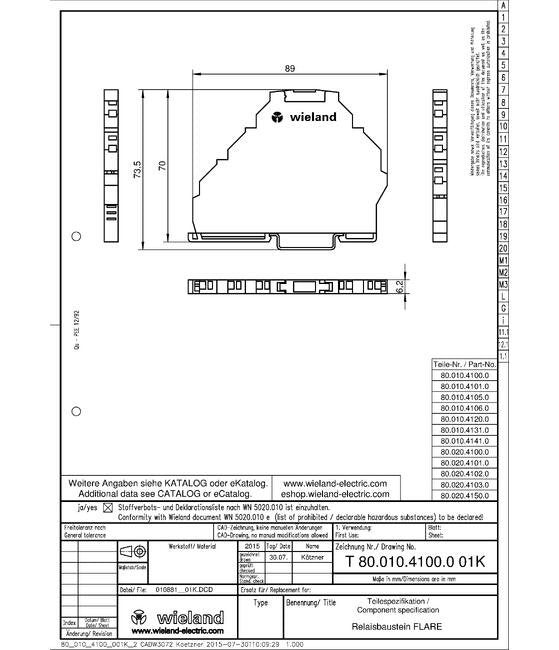

The Wieland 24DC-1W-250V6A-F Relay Module is a high-quality mechanical relay featuring a 6.2 mm width, 1 change-over contact, and spring clamp terminals. With an input of 24V DC and an output of 250V AC / 6A, this relay module ensures reliable performance. It boasts a compact design with dimensions of 70mm depth, 6.2mm width, and 98mm height. Compliant with RoHS and REACH-SVHC standards, this relay module is suitable for various industrial applications requiring high electrical performance and safety.
Product Specifications
Classification Eclass 81 Classification
27371601
Classification Etim 30 Classification
EC001437
Classification Etim 40 Classification
EC001437
Classification Etim 50 Classification
EC001437
Classification Etim 60 Classification
EC001437
Classification Etim 70 Classification
EC001437
Dimensions Depth
70 mm
Dimensions Height
98 mm
Dimensions Width
6.2 mm
General Brands
Wieland
General Complete With Socket
Yes
General Connection Type
Spring Clamp Connection
General Degree Of Protection Ip
IP20
General Detachable Clamps
No
General Forced Guided Contacts
No
General Function Drive
Mono Stable
General Model
RELAY MODULE FLARE-24DC-1W-250V6A-F
General Number Of Change Over Contacts
1
General Polarization Drive
Polarity Free
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Direct Current Dc Lower Nominal Voltage
19.2 V
Technical Data Direct Current Dc Upper Nominal Voltage
30 V
Technical Data Minimum Direct Current Dc Nominal Voltage
24 V
Technical Data Type Of Excitation
Direct Current (DC)
