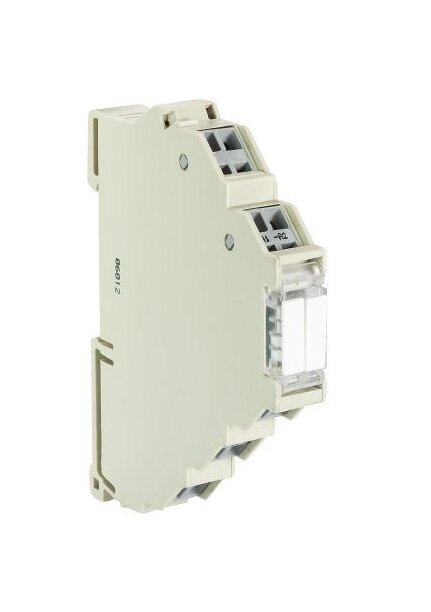

Wieland 24DC-2W-250V6A-F Solid State Relay Module
Wieland 24DC-2W-250V6A-F Solid State Relay Module
SKU:COU-901517
Reliable Wieland 24DC-2W-250V6A-F Relay Module for industrial applications, compliant with RoHS & REACH-SVHC standards.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Wieland 24DC-2W-250V6A-F Solid State Relay Module
$34.99
Quantity: 1
Claim Your Seller Account
Wieland 24DC-2W-250V6A-F Solid State Relay Module
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 24DC-2W-250V6A-F Relay Module is a high-quality solid state relay designed for reliable performance in industrial settings. With 2 change-over contacts and spring clamp terminals, it offers seamless connectivity. This mono stable relay operates on 24V DC input, supporting 250V AC / 6A output. Compliant with RoHS and REACH-SVHC standards, this relay module ensures environmental responsibility.
Product Specifications
Classification Eclass 81 Classification
27371601
Classification Etim 30 Classification
EC001437
Classification Etim 40 Classification
EC001437
Classification Etim 50 Classification
EC001437
Classification Etim 60 Classification
EC001437
Classification Etim 70 Classification
EC001437
Dimensions Depth
70 mm
Dimensions Height
98 mm
Dimensions Width
12.4 mm
General Brands
Wieland
General Complete With Socket
Yes
General Connection Type
Spring Clamp Connection
General Detachable Clamps
No
General Forced Guided Contacts
No
General Function Drive
Mono Stable
General Model
RELAY MODULE FLARE-24DC-2W-250V6A-F
General Number Of Change Over Contacts
2
General Polarization Drive
Polarity Free
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Direct Current Dc Lower Nominal Voltage
19.2 V
Technical Data Direct Current Dc Upper Nominal Voltage
30 V
Technical Data Minimum Direct Current Dc Nominal Voltage
24 V
Technical Data Type Of Excitation
Direct Current (DC)
