Wieland 24V-1W-AU Coupling Relay Module
Wieland 24V-1W-AU Coupling Relay Module
SKU:COU-30d242
Get the Wieland 24V-1W-AU Coupling Relay Module for reliable electrical control. 6.2mm width, 24V AC/DC voltage, 1 change-over contact.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland 24V-1W-AU Coupling Relay Module
$29.99
Quantity: 1
Claim Your Seller Account
Wieland 24V-1W-AU Coupling Relay Module
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 24V-1W-AU Coupling Relay Module is a reliable solution for electrical control applications. With a width of 6.2mm, this flare move relay features a plugable design and a nominal operating voltage of 24V AC/DC. It includes 1 change-over contact rated at 250V AC/6A, made of AGSNO2 + AU materials. The relay module is IP20 rated, polarity free, and comes complete with a socket, ensuring easy installation and secure connections. Compliant with RoHS and REACH-SVHC standards, this relay module meets the requirements for environmentally friendly operations.
Product Specifications
Classification Eclass 81 Classification
27371601
Classification Etim 40 Classification
EC001437
Classification Etim 50 Classification
EC001437
Classification Etim 60 Classification
EC001437
Classification Etim 70 Classification
EC001437

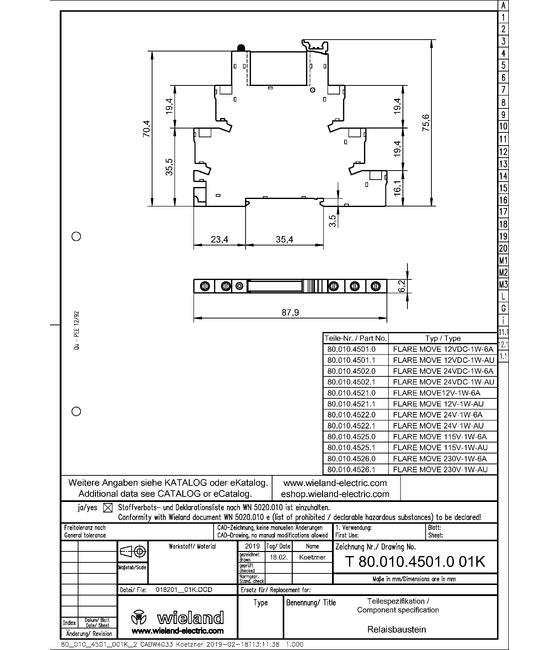

Dimensions Depth
76 mm
Dimensions Height
88 mm
Dimensions Width
6.2 mm
General Brands
Wieland
General Complete With Socket
Yes
General Connection Type
Screw Connection
General Degree Of Protection Ip
IP20
General Detachable Clamps
No
General Forced Guided Contacts
No
General Function Drive
Mono Stable
General Model
RELAY MODULE FLARE MOVE 24V-1W-AU
General Number Of Change Over Contacts
1
General Polarization Drive
Polarity Free
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Direct Current Dc Lower Nominal Voltage
18 V
Technical Data Direct Current Dc Upper Nominal Voltage
28.8 V
Technical Data Maximum Rated Frequency Auxiliarycontrol Current
60 Hz
Technical Data Minimum Direct Current Dc Nominal Voltage
24 V
Technical Data Minimum Rated Frequency Auxiliarycontrol Current
50 Hz
Technical Data Rated Frequency Auxiliarycontrol Current Circuit
50 to 60 Hz
Technical Data Type Of Excitation
Alternating Current (AC)/Direct Current (DC)
