Wieland 24V AC/DC Coupling Relay Module
Wieland 24V AC/DC Coupling Relay Module
SKU:COU-17d201
High-quality Wieland 24V AC/DC coupling relay module with 1 change-over contact and compact design. IP20 protection, polarity-free, and RoHS compliant.
Regular price
$42.99
Regular price
Sale price
$42.99
Unit price
per
Initiate Order
Wieland 24V AC/DC Coupling Relay Module
$42.99
Quantity: 1
Claim Your Seller Account
Wieland 24V AC/DC Coupling Relay Module
$42.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland RELAY MODULE FLARE MOVE 24V-1W-6A is a high-quality coupling relay module designed for reliable performance. It features a 1 change-over contact with a screw connection, suitable for both 24V AC and DC applications. With a compact design of 6.2mm width and 88mm height, this relay module is complete with a socket for easy installation. Meeting IP20 protection standards, it is polarity-free and mono-stable, ensuring safe and efficient operation. Compliant with RoHS and REACH-SVHC standards, this relay module is a dependable choice for various industrial and institutional applications.
Product Specifications
Classification Eclass 81 Classification
27371601
Classification Etim 40 Classification
EC001437
Classification Etim 50 Classification
EC001437
Classification Etim 60 Classification
EC001437
Classification Etim 70 Classification
EC001437

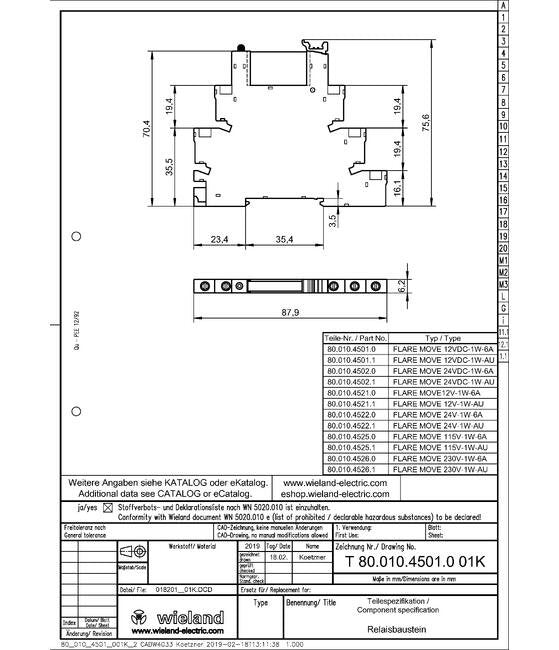

Dimensions Depth
76 mm
Dimensions Height
88 mm
Dimensions Width
6.2 mm
General Brands
Wieland
General Complete With Socket
Yes
General Connection Type
Screw Connection
General Degree Of Protection Ip
IP20
General Detachable Clamps
No
General Forced Guided Contacts
No
General Function Drive
Mono Stable
General Model
RELAY MODULE FLARE MOVE 24V-1W-6A
General Number Of Change Over Contacts
1
General Polarization Drive
Polarity Free
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Direct Current Dc Lower Nominal Voltage
18 V
Technical Data Direct Current Dc Upper Nominal Voltage
28.8 V
Technical Data Maximum Rated Frequency Auxiliarycontrol Current
60 Hz
Technical Data Minimum Direct Current Dc Nominal Voltage
24 V
Technical Data Minimum Rated Frequency Auxiliarycontrol Current
50 Hz
Technical Data Rated Frequency Auxiliarycontrol Current Circuit
50 to 60 Hz
Technical Data Type Of Excitation
Alternating Current (AC)/Direct Current (DC)
