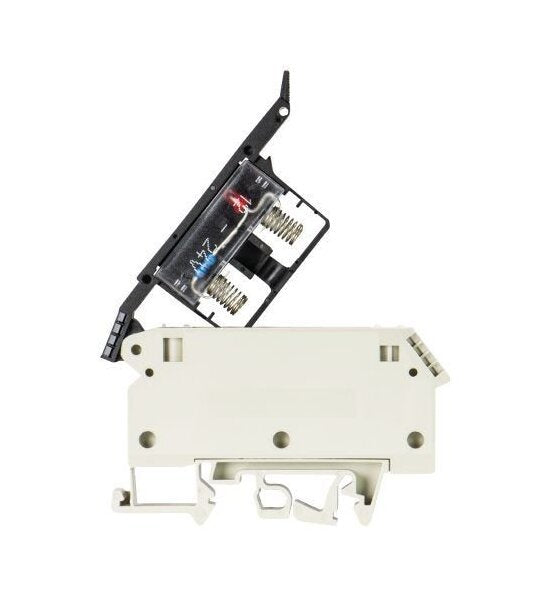

Wieland 24V WK 4/THSI6 Fuse Terminal Block
Wieland 24V WK 4/THSI6 Fuse Terminal Block
SKU:DIN-616e10
Reliable Wieland 24V Fuse Terminal Block for safe and easy electrical installations.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland 24V WK 4/THSI6 Fuse Terminal Block
$24.99
Quantity: 1
Claim Your Seller Account
Wieland 24V WK 4/THSI6 Fuse Terminal Block
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland 24V WK 4/THSI6 Fuse Terminal Block is a reliable solution for electrical installations, featuring a 6.3 x 32 mm G-Fuse insert and a rated current of 10 A. Designed with a gray PA666 insulating housing and V0 inflammability class, this terminal block ensures safety and durability. With screw connections and a DIN Rail mounting method, it offers easy installation on TS 35 and TS 32 rails. Compliant with RoHS, REACH-SVHC regulations, and UL standards, this terminal block meets the highest industry quality and safety requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27141116
Classification Etim 30 Classification
EC000899
Classification Etim 40 Classification
EC000899
Classification Etim 50 Classification
EC000899
Classification Etim 60 Classification
EC000899
Classification Etim 70 Classification
EC000899
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
4 mm²
Connection Data Maximum Solid Cross Section
6 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Wire Strip Length
8 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Model
WK 4/THSI6
General Mounting Method
DIN Rail (Top Hat Rail) | G-Rail
General Nominal Cross Section
4 mm²
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
No
General Width Grid Dimension
10 mm
Note Defect Indicator
LED
Note Maximum Operating Voltage Of Defective Display
24 V
Note Minimum Operating Voltage Of Defective Display
12 V
Note Remark To Maximum Rated Voltage
Note max power loss
Note Remark To Rated Current
Note max power loss
Note Voltage Type For Defect Indication
Alternating Current (AC)/Direct Current (DC)
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Closing Plate Required
No
Technical Data Fuse Insert Size
6.3 x 32 mm
Technical Data Maximum Rated Voltage
24 V
Technical Data Rated Impulse Voltage
8 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Voltage Canadian Standards Association Csa
24 V
